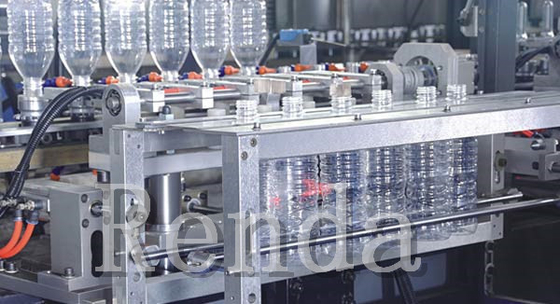

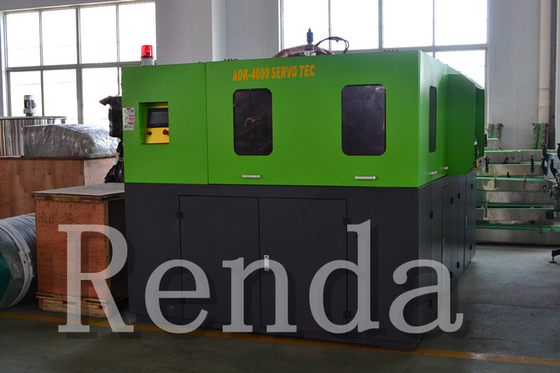

PET Preform Injection Blow Moulding PET Bottle Blowing Machine 2000 - 8000 BPH 380V

Large Image : PET Preform Injection Blow Moulding PET Bottle Blowing Machine 2000 - 8000 BPH 380V Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CM-A2

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case packing
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Features:	Automatic	Application:	Bottle\|water Bottle
Plastic Processed:	PET\|plastic	Product Name:	PET Preform Injection Blow Moulding PET Blowing Machine Manufacture 2000-8000BPH
Voltage:	220V\|380V	Volume:	0.1- 2L
Material:	SUS 304 316
High Light:	blow moulding machine , bottle blow molding machine

PET Preform Injection Blow Moulding PET Bottle Blowing Machine 2000 - 8000 BPH 380V

Quick Detail:

Condition: New
Application: Bottle
Plastic Processed: PET
Blow Moulding Type: Stretch Blow Moulding
Automatic: Yes
Model Number: CM-A2 CM-A4 CM-A6 CM-A8
Name:Name:Bottle Blowing Machine

Description:

1. Extruding system:

Various screw design for high efficiency of mixing and elasticizing the quality.

2. Clamping device:

Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well.

3. Hydraulic pattern and pneumatic system:

We adopt the oil circulation system from America Vickers or Japan YUKEN. The selecting of oil pump, circulation board and the unique filter system, makes the oil circulation with faster speed, stability in reducing speed, low noise, energy conservation and long duration.

4. Electrical controlling system:

On the basis of our rich experience in extrusion field, we all adopt high quality pneumatic accessories, and in accordance with the requirement of each extrusion blow products, we design different blowing article, air exhausting, air dryness and so on blow system.adopt programmable controller made in Siemens Germany. Every electric component is of world-famous brand.

Low rejection rate: less than 0.2 percent.

Applications:

PET Preform Injection Blow Moulding PET Blowing Machine Manufacture 2000-8000BPH is suitable for producing PET plastic containers and bottles in all shapes.

Specifications:

Model	ITEM	CM-A2	CM-A4
Productivity	Depend on bottle design	1800-2000PCS/H	3200-4000PCS/H
Product type	Volume	0.1-2L	0.1-2L
	Body diameter	≤100mm	≤100mm
	Height	≤310mm	≤310mm
	Neck diameter	≤38mm	≤38mm
Mould	Cavity	2	4
	Mold thickness	240mm	240mm
	Mold size	260240370mm	510240360mm
Main machine power	Electrical source power	380V/220V 50/60HZ 3Phase	380V/220V 50/60HZ 3Phase
	Power	25kw	49kw
	Really use power	6.5kw	13kw
Air system	HP air compressor	1.4 m3/min 3.0Mpa	2.0 m3/min 3.0Mpa
	LP air compressor	1.0 m3/min 1.0Mpa	1.6 m3/min 1.0Mpa
	Air Tank	0.6m3 3.0Mpa	0.6m3 3.0Mpa
	Air dryer	1.0m3/min 3.0Mpa	2.0m3/min 3.0Mpa
Cooling water	Water Chiller	3HP	3HP
Machine	Size(LWH)	190012801930mm	190018601930mm
Machine	Weight	2000kg	3600kg
Preform unscrambler	Size(LWH)	20009502480mm	20009502480mm
Preform unscrambler	Weight	250kg	250kg

Competitive Advantage:

*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.

PET Preform Injection Blow Moulding PET Blowing Machine Manufacture 2000-8000BPH

Download for more details:

Full Automatic Bottle blowing machine.pdf
