1 Year Warranty Beverage Water Bottle Filling Machine 2000ml PET Bottle Pure Water Filling
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 2000-20000BPH 200ML-20000ML | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Power: | 4.5KW | Product Name: | Mineral Water Filling Machine Price, Mineral Water Filling Plant 2000ml PET Bottle |
| Voltage: | 110V|380V/customized | Weight: | 2500kg |
| Motor: | Siemens/ABB | Packing: | PET Glass Bottles/Cans |
| High Light: | automatic bottle filling machine,water filling machine |
||

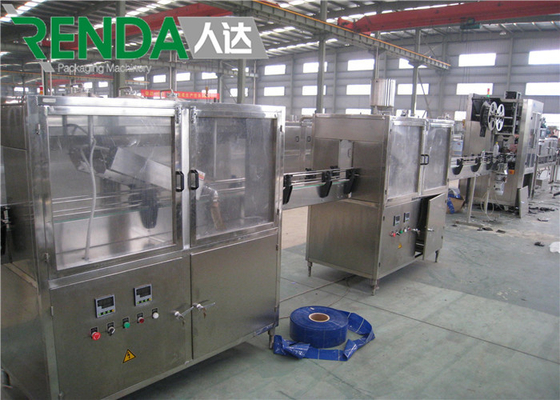

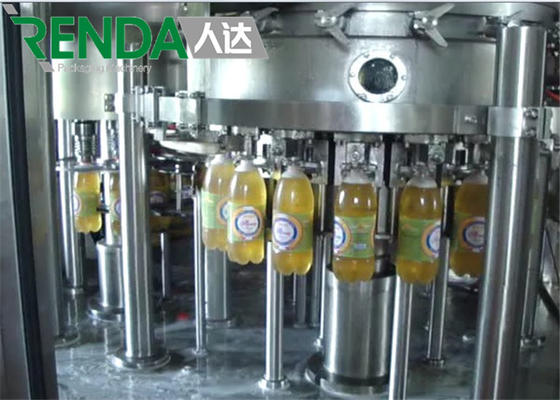

1 Year Warranty Beverage Water Bottle Filling Machine 2000ml PET Bottle Pure Water Filling
Quick Detail:
Production Name: Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V/Customized
Power: 3.8KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3100*2300*2800mm
Weight: 3.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.2-2L
Capacity: 2000-20000
Material: stainless steel
Warranty: 1 year
Packing: Wooden Case Packing
After-sales Service Provided: Engineers available to service machinery overseas
Description:
(1) The bottle water filling machine rinsing capping is suitable for different types of PET bottles such as mineral water,juice drink,milk and so on .
(2) The bottle water filling machine sellers in sri lanka rinsing capping volume is 0.25L-2L and speed is 2000-36000pcs/hour
(3) The bottle water filling machine sellers in sri lanka rinsing capping uses SS316 and SS304 stainless steel that accord with the CE standard and ISO9000.
Parameters:
| Technical parameters | 8/8/3 | 18-18-6 | 24-24-8 | 32-32-10 |
| Production capacity (500ml)(B/H) | 3000 | 6000 | 10000 | 14000 |
| Bottle washing station | 2 | 2.5 | 5 | 6 |
| Drying station | 2 | 3.5 | 6 | 10 |
| PET bottle size (mm) | D=60~97mm | |||
| H=150~320mm | ||||
| Capping torque (N.m) | 0.6~2.8 | 0.6~2.8 | 0.6~2.8 | 0.6~2.8 |
| Installed capacity (Kw) | 2.38 | 2.38 | 4.18 | 4.18 |
| Compressed Air consumption(0.6Mpa)Nm3/min | 0.5 | 0.5 | 0.6 | 0.8 |
| Washing bottles water consumption(0.2-0.25Mpa)m3/h | 1.5 | 1.5 | 1.5~2 | 1.5~2 |
| Dimension(L*W*H)(mm) | 2300×2000×2850 | 2500×2000×2850 | 2800×2300×2850 | 4150×2560×2850 |
| Weight(t) | 4 | 4.5 | 6 | 7 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
2000-4000 Bottles per hour water filling plant.pdf
6000-8000 Water Bottling Production Line.pdf
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
