200 - 300 BPH Pure Mineral Water Barrel Filling Machine With Rinsing / Filling / Capping
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Water | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 5 Gallon | Driven Type: | Electric |
| Power: | 1.75KW | Voltage: | 110V|220V|380V |
| Material: | Stainless Steel | Processing: | Bottle Packing Machine |
| High Light: | water filling machine,automatic bottle filling machine |
||

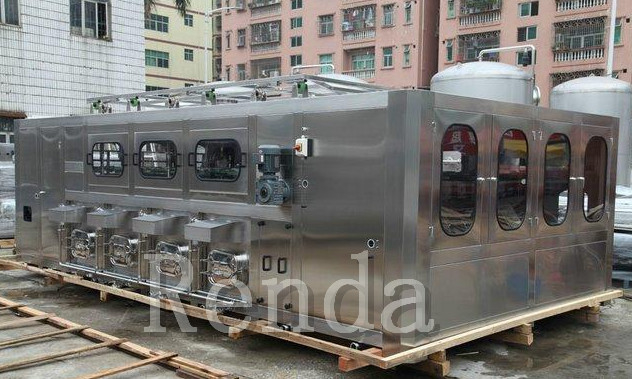

200 - 300 BPH Pure Mineral Water Barrel Filling Machine With Rinsing / Filling / Capping
Download for more details:
900BPH Barrel Filling Line.pdf
Quick Detail:
- Name: Barrel Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 1.75KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 3790*650*1550mm
- Weight:800kg
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle:5 gallon
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
Description:
1.QGF series barreled production line consists of washing, filling and capping.
2.It is suitable for filling of all kinds of round and square barrels.
3.The production line adopts electric-program control.
4.It has safe devices, such as interlock, signal, automatic check and so on.
5.Its key parts are imported and their quality is reliable.
6.The whole machine is made of stainless steel. It meets the demands of food hygiene. Its structure is reasonable and its operation is convenient.
7.It is ideal equipment for producing mineral water, super-pure water, space water and distilled water.
Applications:
300-2000BPH Series Automatic Pure Mineral Barrel Water 5 Gallons Filling Machine / Plant
Specifications:
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 10 |
| Volume | 20 | 20 | 20 | 20 | 20 | 20 |
| Barrel size | ¢270*490 | ¢270*490 | ¢270*490 | ¢270*490 | ¢270*490 | ¢270*490 |
| Capacity | 120 | 300 | 450 | 600 | 900 | 1200 |
| Gas pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Moto power | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| weight | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
Competitive Advantage:
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine
300-2000BPH Series Automatic Pure Mineral Barrel Water 5 Gallons Filling Machine / Plant
