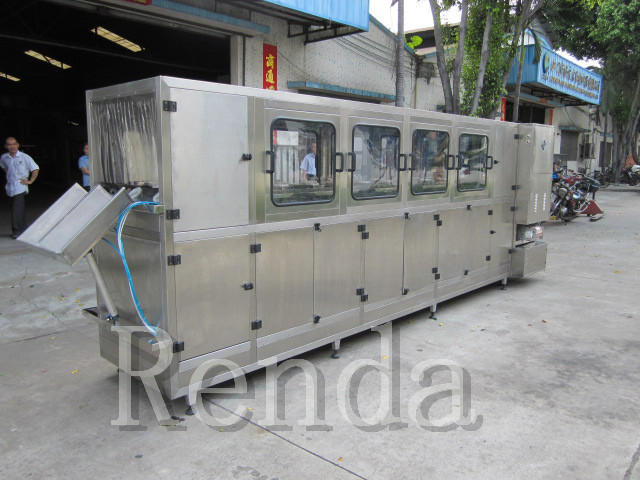

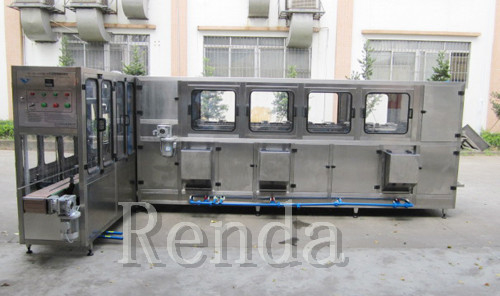

Pure Water Barrel Filling Machine / Equipment 8.5KW With 1 Year Warranty
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Water Filling Equipment | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Power: | 8.5KW |
| Processing: | Bottle Packing Machine | Product Name: | 5 Gallon Barreled Pure Water Filling Machine |
| Voltage: | 110V|220V|380V | Name: | Barrel Filling Machine |
| High Light: | water filling machine,automatic bottle filling machine |
||
Pure Water Barrel Filling Machine / Equipment 8.5KW With 1 Year Warranty
Download for more details:
900BPH Barrel Filling Line.pdf
Quick Detail:
- Name: Barrel Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 8.5KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 2560*2350*2750mm
- Weight:9500kg
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle:5 gallon
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
Description:
- This filling line specially produce 5 gallon barreled drinking water,those types(barrels/hour) are:100 type,150 type,200 type,300 type,400 type,450 type,600 type,900 type,1200 type.It integrates bottle washer,filler and sealer into one unit.
- In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps automatically.
- The line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy,also this line can automatically carry out barrel feeding,washing,sterilizing,filling,capping,counting and products discharging.
- It is a new kind of barrelled water auto-producing line,which intergrates mechanism,electricity and pneumatics technologies together.
Applications:
The QGF series filling machine is specially designed for the 5 gallon barrel.
Specifications:
| Model | QF-100 | QF-200 | QF-300 | QF-450 | QF-600 | QF-900 | QF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 8 | 8 | 8 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | 270×490 | 270×490 | 270×490 | 270×490 | 270×490 | 270×490 | 270×490 |
| Capacity(b/n) | 100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Moto power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage(v) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Competitive Advantage:
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine
