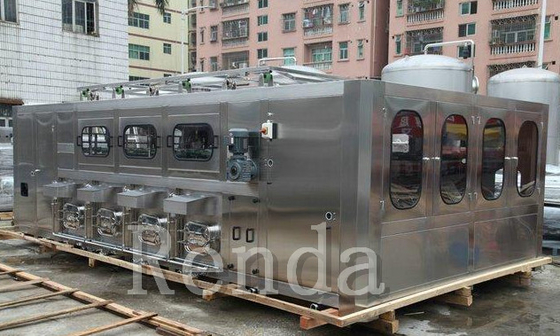

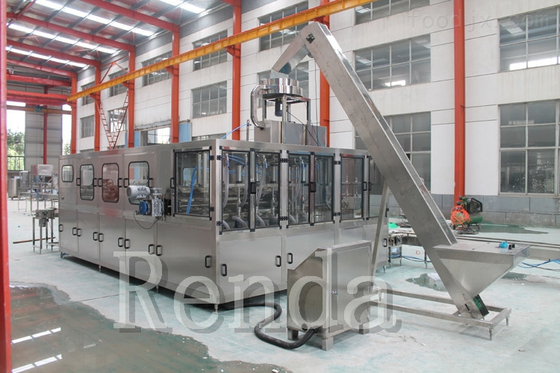

Fully Automatic Rotary Barrel Filling Machine Drinking Water Bottling Plant

Fully Automatic Rotary Barrel Filling Machine Drinking Water Bottling Plant

Quick Detail:

1. Name: Barrel Filling Machine
2. Driven Type: Electric
3. Voltage: 110/220/380V
4. Power: 8.5KW
5. Place of Origin: Jiangsu, China (Mainland)
6. Brand Name: Renda
7. Dimension(L*W*H): 2560*2350*2750mm
8. Weight:9500kg
9. Certification: CE,ISO
10. Processing: bottle packing machine
11. Suitable Bottle:5 gallon
12. Material: stainless steel
13. Warranty: 1 year
14. After-sales Service Provided: Engineers available to service machinery overseas

Description:

Our barreled drinking water filling machine is suitable for 3 gallon barrel, 5gallon barrel, and 6 gallon barrel, and can be used for filling mineral water, pure water, etc.

1. PLC controlled, full automatic working, filling volume and filling time can be adjustable;

2. All machines are made of Stainless steel SUS304 or SUS316, and the surface of the machine is well polished, easily for future cleaning;

3. All the pipeline, valve, is made of stainless steel, other necessary PVC parts are food grade;

4. We can design the producing capacity according to customer requirement, the rinsing, filling head can be from 1-16, during rinsing process, the barrel will be rinsing by hot alkali, disinfecting water, and then pure water, to ensure every corner of the bottle is well cleaned;

5. Cylinder-pushing structure is widely used in our bottle feeding, bottle filling, and bottle capping system, and the whole process is automatically

6. All the pump used in our producing line is stainless steel material;

7. No bottles no rinsing, no bottle no filling, no bottles no capping;

8. Producing capacity: 100BPH-2000BPH

Applications:

New Cheap Full Automatic Rotary Barreled Drinking Water 5 Gallon Filling Machine

Specification:

Download for more details:

300BPH 5 Gallon Water Filling and Packing System.pdf

New Cheap Full Automatic Rotary Barreled Drinking Water 5 Gallon Filling Machine
