Compact Structure Barrel Filling Machine / High Efficiency Water Filling Line

Compact Structure Barrel Filling Machine / High Efficiency Water Filling Line

Download for more details:

600BPH Barrel Filling Line.pdf

Quick Detail:

• Name : Barrel Filling Machine
• Driven Type: Electric
• Voltage: 110/220/380V
• Power: 8.5KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Dimension(L*W*H): 2560*2350*2750mm
• Weight:9500kg
• Certification: CE,ISO
• Processing: bottle packing machine
• Suitable Bottle:5 gallon
• Material: stainless steel
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas

Description:

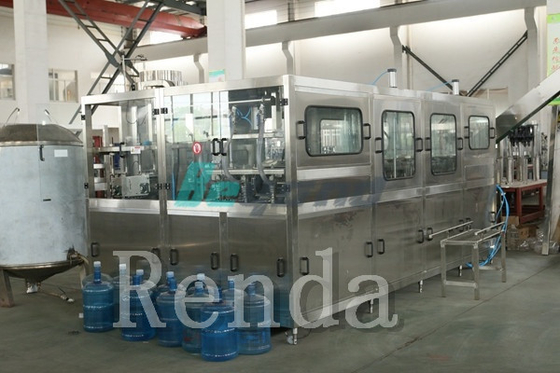

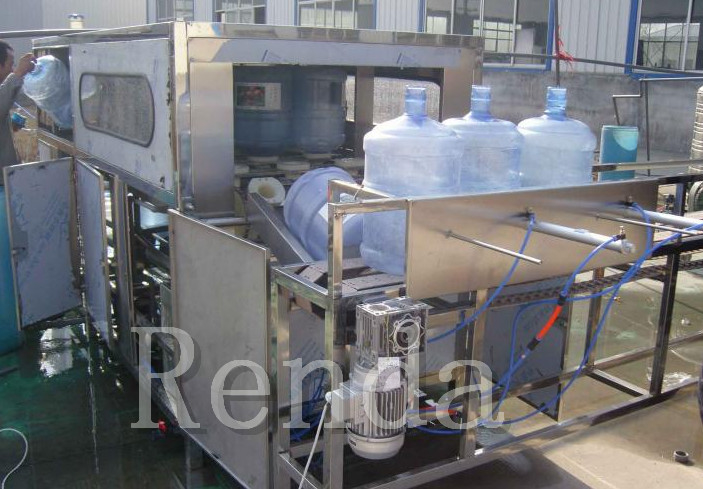

QGF-600 5 gallon mineral water bottling line is mainframe for produce 5 gallon barreled water. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto wear lid and capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.

Technical parameters :

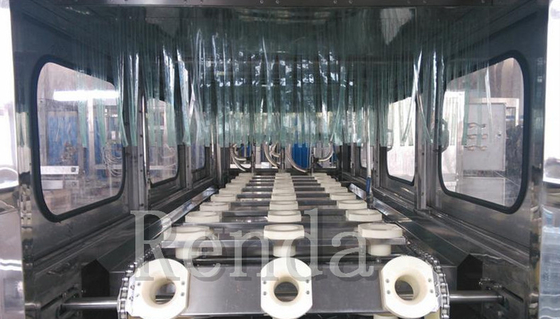

Mainframe working place:4 rows and 10 working station

Washing: move up and down

Suitable shape of barrel:Φ270×490mm

The number of filling head:4sets

The number of capping head:1set

Capacity: 600b/h

Total power:6KW,(washing pump :4pcs,filling pump: 2pcs)

Pressure of air source:0.6--0.8Mpa,consumption of air:1200L/m

Water Consumption:consumption of water 2T/H,(disinfection water reuse,water reuse one time)

Amount of filing water:15T/H

Weight:abut1800kg

Applications:

The QGF series filling machine is specially designed for the 5 gallon barrel.

Specifications:

Competitive Advantage:

1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine
