PET Bottle Electric Juice Filling Machine For Fruit Juice / Beverage Packaging 3.2KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 15000BPH|2000-4000BPH | Driven Type: | Electric |
| Material: | Stainless Steel | Power: | 3.2KW |
| Voltage: | 110V|220V|380V | Name: | Juice Filling Machine |
| High Light: | automatic bottle filling machine,beverage filling machine |
||

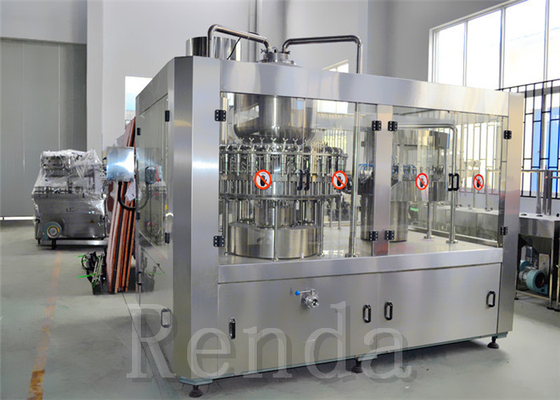

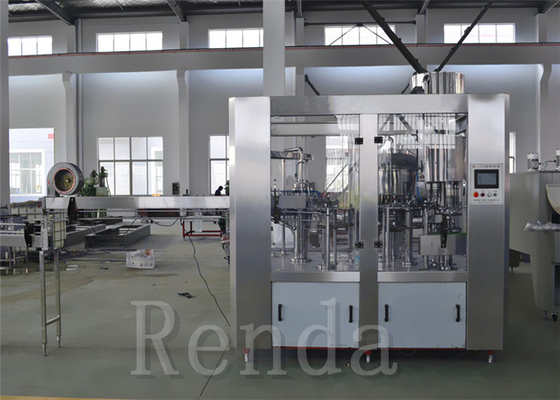

PET Bottle Electric Juice Filling Machine For Fruit Juice / Beverage Packaging 3.2KW
Quick Detail:
- Name:Juice Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 3.2KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 1900*1500*2500mm
- Weight:7T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overse
Description:
1.It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
2. Adopting suspensory transmission gear can easily upkeep and be repaired.
3. The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
4. It uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Specifications:
|
Main Technical Specifications |
|
|
Model |
RCGF12-12-6 |
|
Production Capacity (600ml)(b/h) |
2000-4000 |
|
Way of filling |
Hot filling |
|
Filling precision |
±5mm |
|
Feedback consumption |
≤8% |
|
Polyester bottle standard(mm) |
Bottle Diameterƒ50-ƒ92;Height:150-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(Mpa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
800 |
|
Gas source pressure (M Pa) |
0.4 |
|
Total power(Kw) |
3.2 |
|
Total Weight(Kg) |
2000 |
|
Dimension(L*W*Hmm) |
1900*1500*2500 |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
Electric Juice Filling Machine Equipment PET Bottle Zhangjiagang Factory Supplier
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
