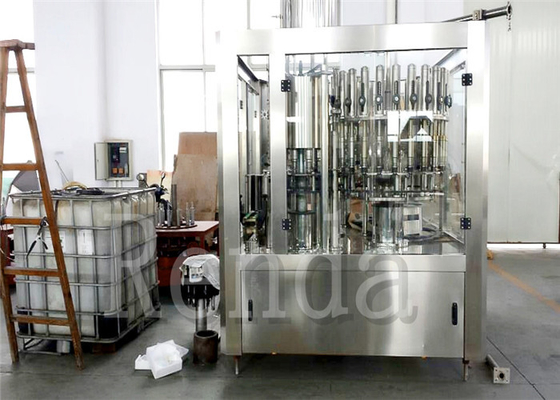

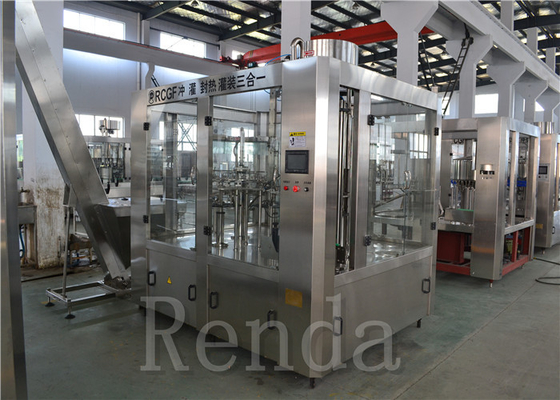

Small Scale Bottle Juice Filling Machine 4000 BPH 1.5KW 380V Beverage Filling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 15000BPH|2000-4000BPH | Driven Type: | Electric |
| Power: | 3.2KW | Voltage: | 110V|220V|380V |
| Material: | SUS304 316 | ||
| High Light: | automatic bottle filling machine,beverage filling machine |
||
Small Scale Bottle Juice Filling Machine 4000 BPH 1.5KW 380V Beverage Filling Machine
Quick Detail:
- Name: Juice Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 3.2KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 1900*1500*2500mm
- Weight:7T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overse
Description:
1, Multi rounds sanitizer spraying and cleaning technology to assure the safety of technics.
2, Mechanical type or electronic pulse type nozzle is of stable performance and water saving.

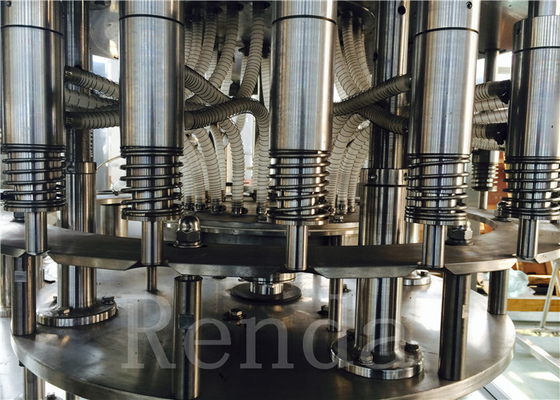

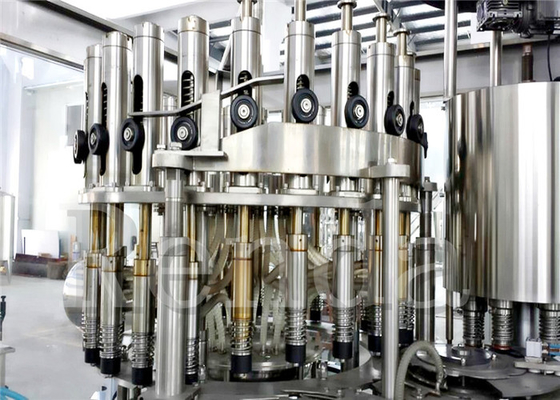

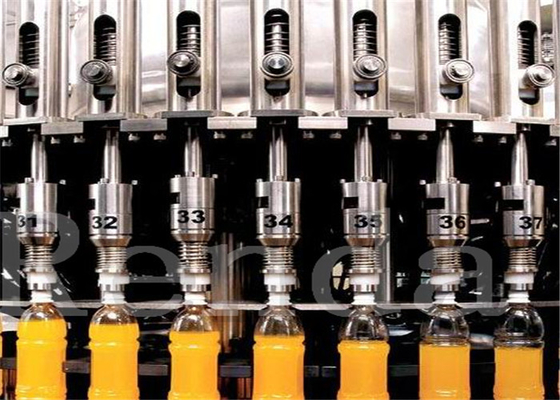

3, Non-contact filling head avoids cross contamination and ensures the safety of microorganism.
4, Betatron flowmeter gives the exact constant volume.
5, The capping machine is of aseptic type, self lubrication ceramics bearing, equipped with servo-motor.
6, The cap sterilizer is of soaking type or liner spraying type.
7, Automatic inspection, control and parameter record system.
8, All the key points of the production line have been taken aseptic monitoring.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Specifications:
Main Technical Specifications | |
Model | RCGF12-12-6 |
Production Capacity (600ml)(b/h) | 2000-4000 |
Way of filling | Hot filling |
Filling precision | ±5mm |
Feedback consumption | ≤8% |
Polyester bottle standard(mm) | Bottle Diameterƒ50-ƒ92;Height:150-320 |
Suitable cap shape | Plastic cap |
Water pressure of washing bottle(Mpa) | 0.2-0.25 |
Water consumption for water bottle(kg/h) | 800 |
Gas source pressure (M Pa) | 0.4 |
Total power(Kw) | 3.2 |
Total Weight(Kg) | 2000 |
Dimension(L*W*Hmm) | 1900*1500*2500 |
Competitive Advantage:

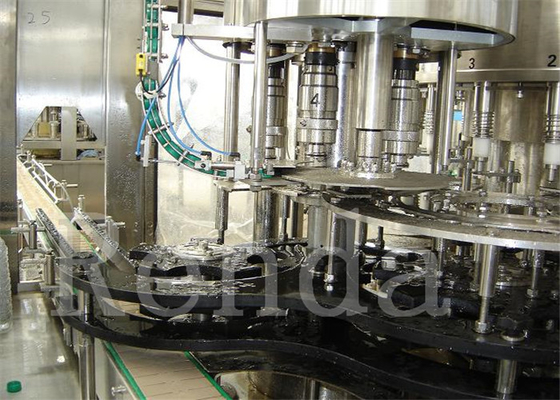

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling

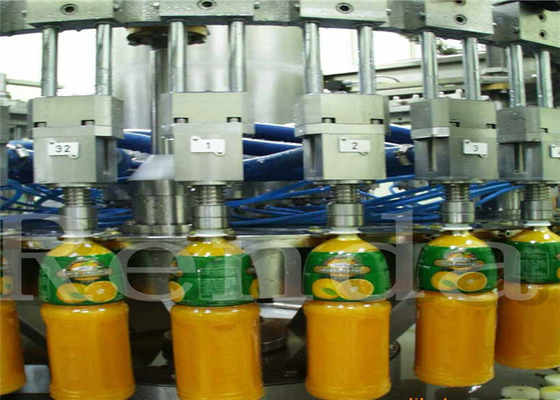

--Capping and clamping technology

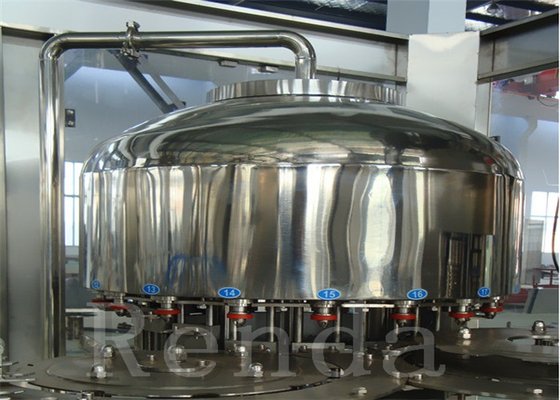

Small Scale Bottle Juice Filling Machine 4000 BPH 1.5KW 380V Beverage Filling Machine
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
