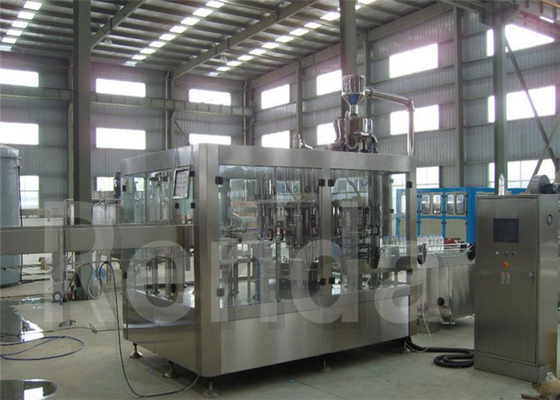

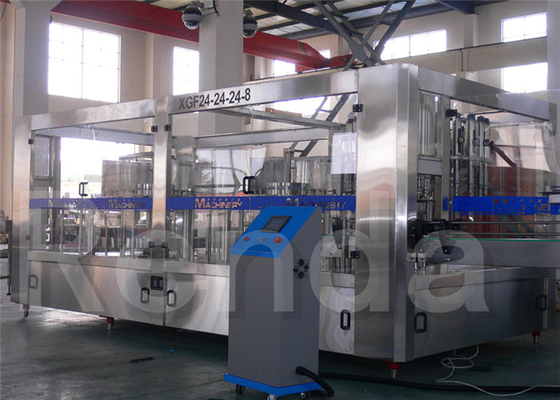

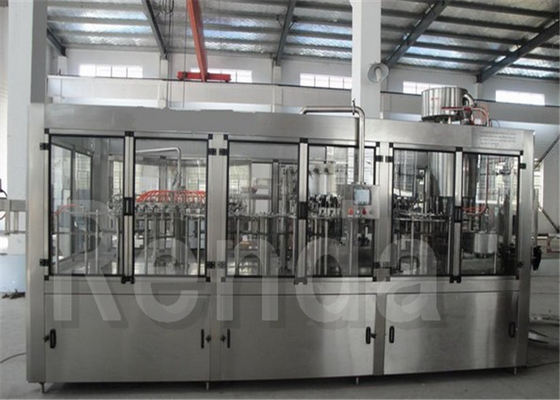

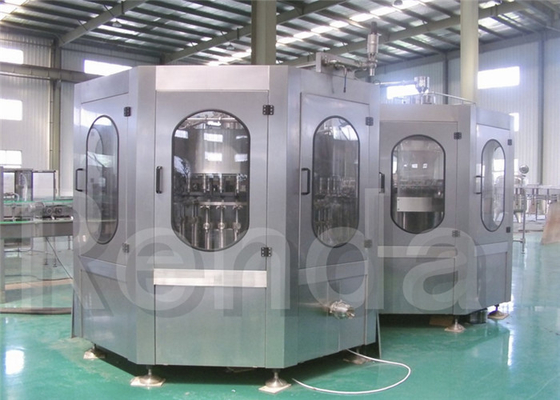

Mineral Water / Beverage / Purified Water Bottle Filling Machine For Plastic Screw Cap 28 mm

Mineral Water / Beverage / Purified Water Bottle Filling Machine For Plastic Screw Cap 28 mm

Quick Detail:

Driven Type: Electric

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 2900*2450*2400mm

Weight: 3T

Processing: bottle packing machine

Suitable Bottle: 0.25-2L

Output: 2000-20000BPH

Material: stainless steel

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Name: Water Bottle Filling Machine

32-32-10 Purified Water Filling Machine for Sale Plastic Screw Cap 28mm

Description:

1. The whole machine adopts card bottle hanging running state design, so that the bottle under high-speed operation stable and reliable. Change a few fittings, Can be quickly and easily implement different bottle production need.

2. Using a new generation of tilting bottles clamp, stainless steel clamps and the bottle thread above part does not contact, bottle clamp with shower, to wash the bottle of any part of the wall.

3. Using advanced micro gravity type negative pressure filling principle, filling fast, stable and accurate. Silos is fully enclosed structure, there is the function of temperature control and automatic reflow, and provide the CIP cleaning interface.

4. This machine satisfies the requirement :of below 95 degrees Celsius hot filling technology, before-capping, equipped with bottle R.O. water flushing device, To ensure that the bottle no moldy phenomenon.

5. Using magnetic torque type screw cap, Pincer-like device tight and reliable and does not hurt cover.

6. The machine adopts the man-machine interface, PLC computer control, touch screen button. there is lack of cover, overload protection and alarm device, can timely detection and troubleshooting, high degree of automation of production

7. And material contact parts adopt high quality stainless steel manufacturing, the main electric components and pneumatic components adopt international famous manufacturers.

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

32-32-10 Purified Water Filling Machine for Sale Plastic Screw Cap 28mm

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.

Download more details:

8000-10000Water Bottling Equipment.pdf

12000-15000BPH Water Filling Production Line.pdf

18000-20000BPH Beverage filling machine.pdf

6000-8000 Water Bottling Production Line.pdf

2000-4000 Bottles per hour water filling plant.pdf

Manufacturing more machines:

Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.

Electric Sensor Liquid Bottle Filling Machine Water Packing Machine Price Glass Bottle

Wooden case packing:

Machine Video:

Products Sample:
