Professional Mineral Water Bottling Machine Washing Filling Capping Monoblock 3-in-1
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000ml|8000BPH |
|---|---|---|---|
| Material: | Stainless Steel | Processing: | Bottle Filling And Packing Machine |
| Product Name: | Professional Mineral Water Bottling Machine Washing Filling Capping Monobloc 3-in-1 | Voltage: | 110V|220V|380V |
| Power: | 3.2KW | ||
| High Light: | beverage filling machine,water filling machine |
||

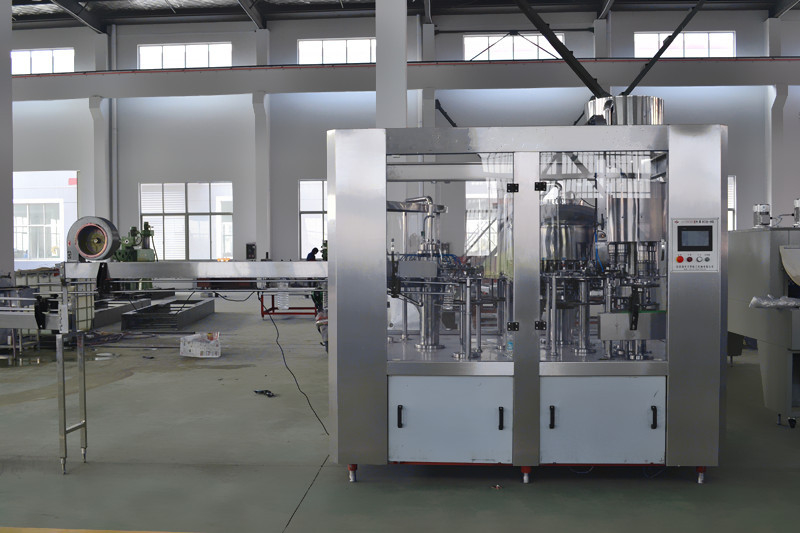

Professional Mineral Water Bottling Machine Washing Filling Capping Monoblock 3-in-1
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
no bottle, no filling
easy operation and maintenance
Name:Carbonated Drink Filling Machine
Description:
The CGFseries mineral water bottling machine is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water bottling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. The CGFmineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for filling PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water bottling production line.
Applications:
Mineral water bottling machine with 3-in-1 mono-block contains washing, filling and capping with complete automation. It is suitable for filling water, such as mineral water, pure water into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Specifications:
|
Main Technical Specifications |
|
|
Model |
CGF18-18-6 |
|
Production capacity(500ml)(b/h) |
6000-8000b/h |
|
Way of filling |
micro-negative pressure filling |
|
Filling precision |
±5mm |
|
Feedback consumption |
≤8% |
|
Polyester bottle standard(mm) |
Bottle Dimaeterƒ50-ƒ92;Height:150-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(M pa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
800 |
|
Gas source pressure (M Pa) |
0.4 |
|
Total power(Kw) |
3.2 |
|
Total Weight(Kg) |
2500 |
|
Dimension(L*W*Hmm) |
2500*2010*2500 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for reference:
6000-8000 Water Bottling Production Line.pdf
Professional Mineral Water Bottling Machine Washing Filling Capping Monobloc 3-in-1
