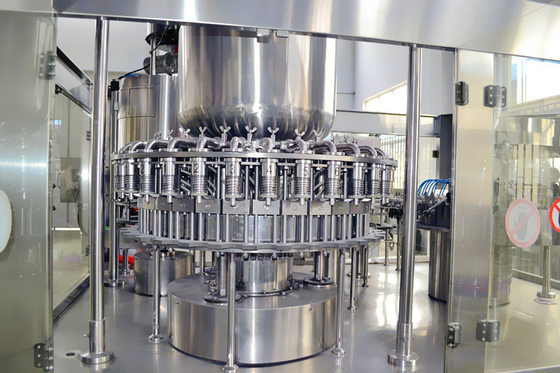

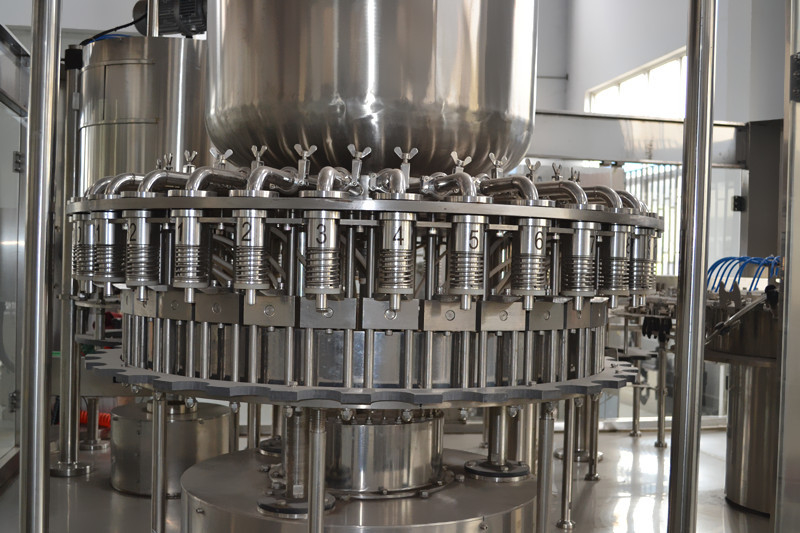

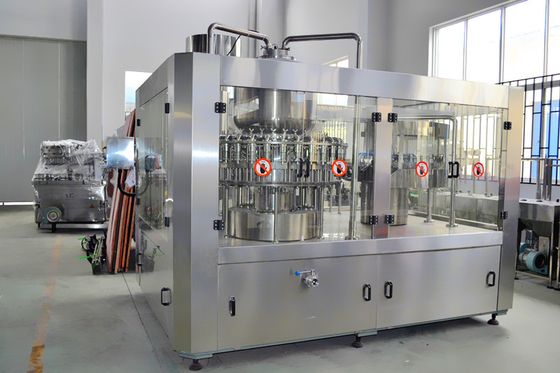

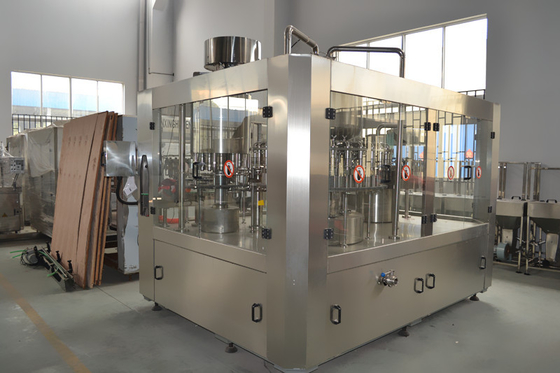

Full Automatic Fruit Juice Filling Machine Stainless Steel Beverage Filling Machine 15000BPH|18000BPH


Full Automatic Fruit Juice Filling Machine Stainless Steel Beverage Filling Machine 15000BPH|18000BPH


Quick Detail:


1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Power: 10.5KW
4. Place of Origin: Jiangsu, China (Mainland)
5. Brand Name: Renda
6. Dimension(L*W*H): 2900*2500*2900mm
7. Weight:9.2T
8. Certification: CE,ISO
9. Processing: bottle packing machine
10. Suitable Bottle: 0.25-2L
11. Material: stainless steel
12. Warranty: 1 year
13. After-sales Service Provided: Engineers available to service machinery overse
14. Name:Juice Filling Machine



Description:

1:The equipment is used in production of  fruit juice/tea hot drink packed in polyester bottles. Washing, filling and capping are integrated in one machine.

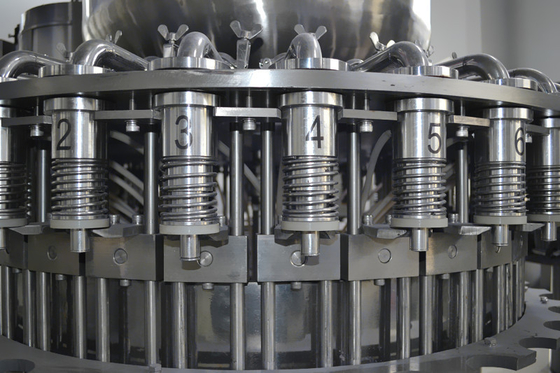

 2:The most advantaged technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180º along the conveying rail. There are two times of internal and external washing. The efficiency of bottle washing is high.
 3:The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
 4:The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available. The machine can be stopped automatically.
5:The frequency changing technology is used to adjust the operation speed. The production capacity can be displayed digitally and can be adjusted conveniently



Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 15000BPH—18000BPH


Specifications:



Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
