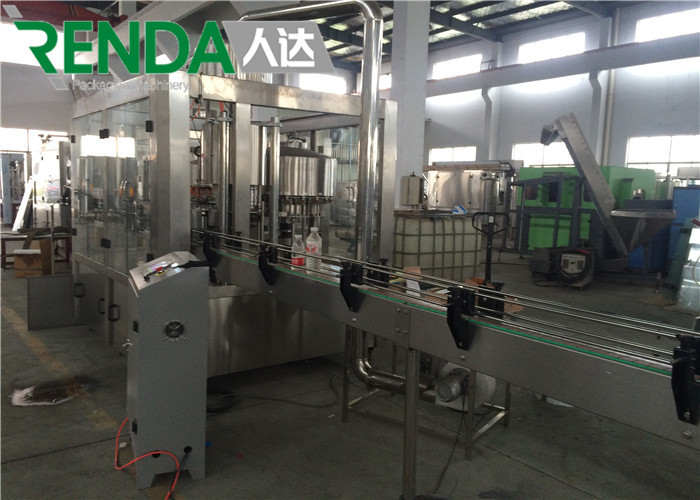

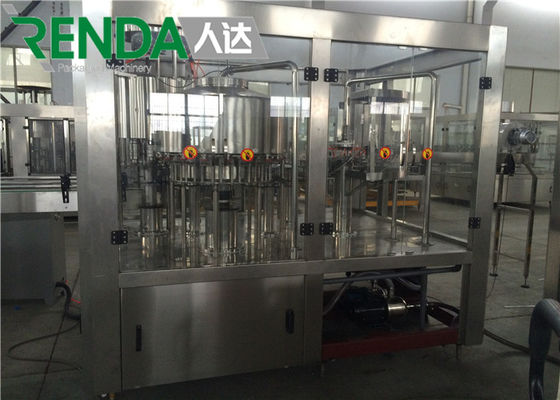

Monoblock Drinking Water Bottle Filling Machine 3-In-1 Filling Machine 330ml - 2000ml

Characters of Equipment:

1. We use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment, only arch board and starwheel such little nylon parts need to be changed.
3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.
4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. splint of starwheel using twist descending way to simplify the process of bottle-size-changing.
6. The machine applies to the production of natural mineral water, purified water and mineralized water.

The filling line includes:

- Water treatment
- Blow molding machine
- Unscrambler
- Air conveyor
- Rinsing-filling-capping 3-in-1 monoblock
- Visual inspection
- Air dryer
- Sleeve / OPP labeler
- Ink jet printer
- Shrink wrapper / wrap-round case packer
- Palletizer
- Etc.

Technical Parameters:

- Number of Filling Valves: 12-80
- Filling Speed: 3000-30000BPH (500ml)
- Type of Bottles: PET Bottles of various shapes
- Bottle Height: 150-320(mm)
- Bottle Diameter: φ 50-110(mm)
- Filling Temperature: Ambient temperature
- Filling Principle: Gravity Filling
- Filling Product: Mineral water, purified water, flavor water and low alcoholic drinks.
