CE Approval Beverage / Water Bottle Filling Machine Stainless Steel For Bottle Packing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Zhangjiagang Manufacturer New Condition Automatic Water Bottling Plant | Application: | Pure Water|mineral Water|beverage |
|---|---|---|---|
| Capacity: | 200ml|2000ml|10000BPH | Material: | Stainless Steel |
| Processing: | Bottle Packing Machine | ||
| High Light: | automatic bottle filling machine,water filling machine |
||

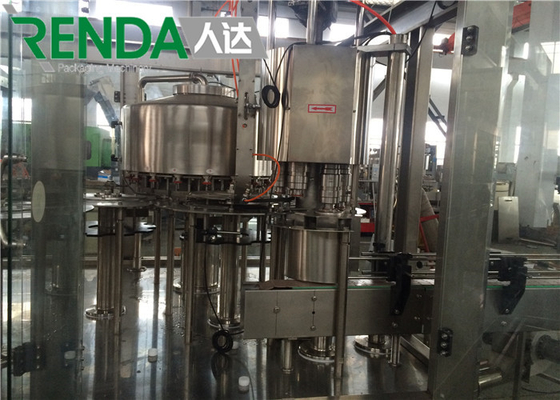

CE Approval Beverage / Water Bottle Filling Machine Stainless Steel For Bottle Packing
Quick Detail:
Production Name: Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Power: 3.8KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2900*2450*2400mm
Weight: 3T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Output: 2000-20000BPH
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas

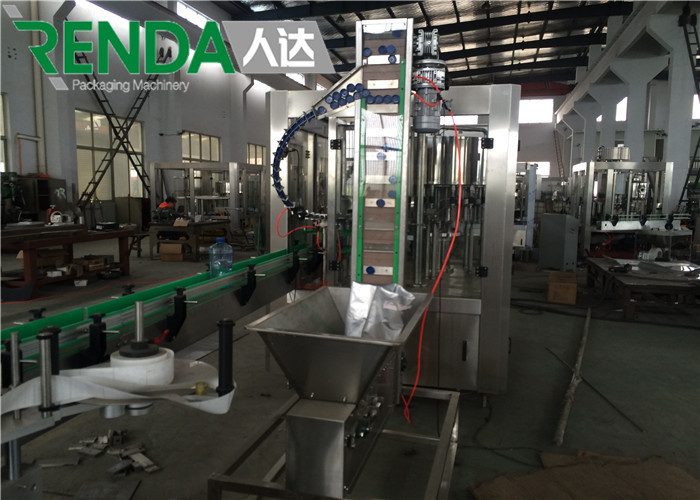

Zhangjiagang Manufacturer New Condition Automatic Water Bottling Plant
1. This water filling machine is a unique design combining the three machines of bottle
washing, filling and capping in one to decrease main power, to save space and to diminish
the air pollution among the three machines.
2. The machine is easy to change the shape of bottles, which can be done by changing thethumb wheel
without adjusting the height of the machine.
3. The filling water machine case and the parts contacting with the materials are made ofstainless steel
which ensures the good external look and easy washing.
4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304,
if needed,Stainless steel is also available.
5. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic
rinsing, filling and capping.
6. Most elements of the electrical system use famous international brand, for example,Mitsubish,Omron
brand .
7. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate,
etc. The quality of the equipments reaches the advanced level of the world.
8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
9. Easy to operate, save the cost for workers.
Technical parameters:
| 1.All parts have a height adjust device, the height of bottle can be adjusted and the diameter can be adjusted according to samples |
| 2.This 3 in 1 filling machine is mainly used for washing, filling and capping.Bottle washing, filling and capping are achieved in one machine |
| 3.Full compliance with the GMP requirements |
| 4.The touch screen shows in seven kinds of languages |
| 5.All parts are made of high quality Stainless steel |
| 6. Convenient to take out component parts to clean and sterilize,adjust to fit to other bottle size with no change parts. |
| 7.The main machine adopts advanced PLC control technology. The key parts adopt international famous products,such as Mitsubishi, Omron, Siemens, etc . |
Technical Data
| 1 | production name | Automatic mineral pure water filling machine |
| 2 | production capacity(b/h) | 3000-5000(customized) |
| 3 | filling volume | 100-1000ml(customized) |
| 4 | washing-filling-capping | 8-8-3(customized) |
| 5 | filling accuracy(%) | 99 |
| 6 | air source pressure(MPA) | 0.6 |
| 7 | air consumption(L/min) | 800 |
| 8 | Power(kw) | 2.2 |
| 9 | Dimension(mm) | 2800*2000*2500(L*W*H) |
| 10 | weight(kg) | 3500 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download more details:
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
6000-8000 Water Bottling Production Line.pdf
2000-4000 Bottles per hour water filling plant.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
Zhangjiagang Manufacturer New Condition Automatic Water Bottling Plant
