Fully Automatic Pure Commercial Drinking Water Bottle Filling Machine 2000 - 20000 BPH
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Full Automatic Pure And Mineral Water Bottling Plant/Commercial Drinking Water Machine | Application: | Pure Water|mineral Water|beverage |
|---|---|---|---|
| Power: | 3.8KW | Capacity: | 200ml|2000ml|10000BPH |
| Material: | Stainless Steel | Processing: | Bottle Packing Machine |
| High Light: | automatic bottle filling machine,water filling machine |
||

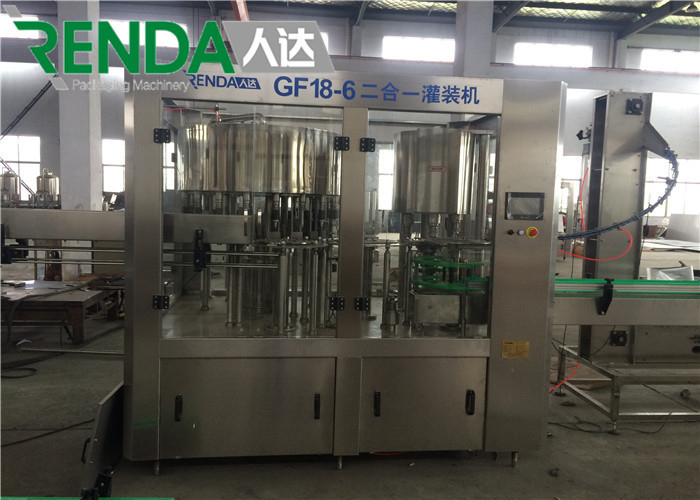

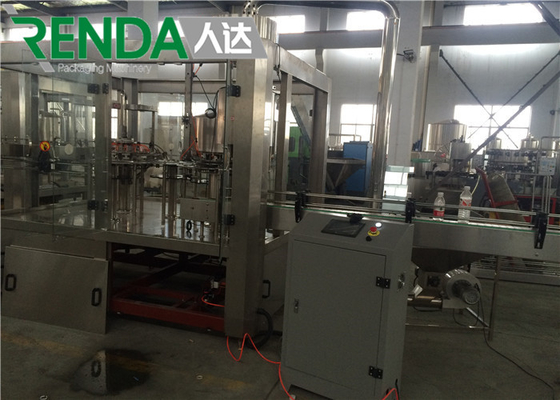

Fully Automatic Pure Commercial Drinking Water Bottle Filling Machine 2000 - 20000 BPH
Quick Detail:
Production Name: Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2900*2450*2400mm
Weight: 3T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Output: 2000-20000BPH
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Full Automatic Pure and Mineral Water Bottling Plant/Commercial Drinking Water Machine
Full Automatic Pure And Mineral Water Bottling Plant/commercial drinking water machine Filling Line---Description
The more valuable a product is, the more unacceptable are any losses occurring due to inaccurate filling. In order to protect you from this, the filling systems from YuFeng for still wine, sparkling wine and spirits are meticulous in ensuring strict compliance with the specified fill levels. And if too much product does get into the containers once in a very long while, they will immediately perform an automatic correction.
The Automatic Natural Water Bottling Plant / Mineral Water Filling Line is mainly used for washing, filling sealing Non-Aerated carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on, The machine design is shorten the time for the drink material contact with outside, Incrensed the sanitation condition and throughout and economy. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine asopts advanced PLC control technology. The key electric elements adopt international famous products.
Full Automatic Pure And Mineral Water Bottling Plant/commercial drinking water machine Filling Line---Technical parameter
| Model | CGF12/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 | CGF40/40/12 |
| Capacity(500/ml/bottle/h) | 3000-4000 | 5000-6000 | 8000-10000 | 12000-14000 | 16000-18000 |
| Suitable bottle shape | PET circular or square | ||||
| Bottle diameter(mm) | Φ 50- Φ 90 | ||||
| Bottle height(mm) | 150-310 | ||||
| Compressed air pressure(MPa) | 0.3-0.7 | ||||
| Washing medium | aseptic water | ||||
| Washing water's pressure(MPa) | 0.25 | ||||
| Total Power(KW) | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 |
| Overall dimensions(mm) | 2230*1630*2250 | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download more details:
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
6000-8000 Water Bottling Production Line.pdf
2000-4000 Bottles per hour water filling plant.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
Full Automatic Pure and Mineral Water Bottling Plant/Commercial Drinking Water Machine
Wooden case packing:
