110V 220V 380V Liquid Water Bottle Filling Machine And Capping Machine 5T For 0.25 - 2L Bottle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000ml|15000BPH |
|---|---|---|---|
| Material: | Stainless Steel | Processing: | Bottle Packing Machine |
| Product Name: | Automatic Liquid Filling And Capping Machine, Water Bottling Plant Sales | Voltage: | 110V|220V|380V |
| Power: | 5KW | ||
| High Light: | automatic bottle filling machine,water filling machine |
||

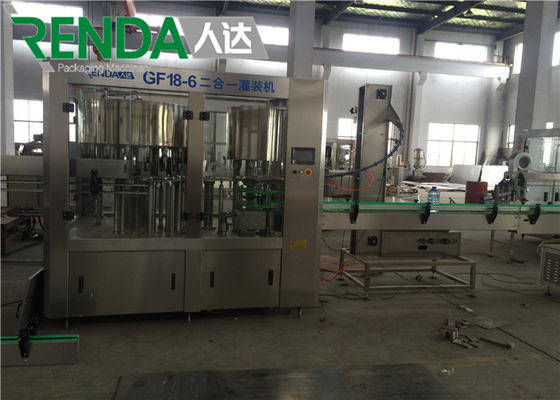

110V 220V 380V Liquid Water Bottle Filling Machine And Capping Machine 5T For 0.25 - 2L Bottle
Quick Detail:
Production Name: Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Power: 5KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3500*2100*2300mm
Weight: 5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
This machine has washer,filler,capper three functions in one body, it is automatic in total process and suitable for PET bottled juice and tea drink which can resistant high temperature.
It also can be used for mineral water, pure water and many other no gas containing drinks. It makes by high quality SUS304, key parts are precision machined by NC tool.
The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Main features of the equipments:
1.Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2.Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.

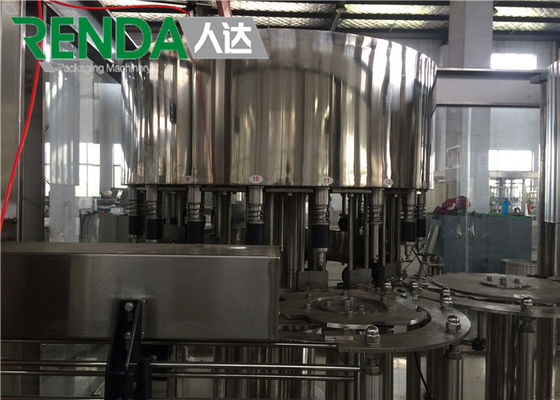

3.Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling. 4Capping adopts
French advanced technology, cap sorter install in a lower position, send cap in level position.
| Model | Washing heads | Filling heads | Capping heads | Production capacity (b/h) | Power of main motor (kw) |
| CGF12-12-6 | 12 | 12 | 6 | 3000-4000 | 5 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-6000 | 5 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 6 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 8 |
| CGF40-40-12 | 40 | 40 | 12 | 15000-18000 | 12 |
| CGF50-50-12 | 50 | 50 | 12 | 18000-22000 | 15 |
| CGF60-60-15 | 60 | 60 | 15 | 20000-25000 | 18 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
18000-20000BPH Beverage filling machine.pdf
Automatic Liquid Filling and Capping Machine, Water Bottling Plant Sales
