Automatic Small Water / Drink / Soda Water Bottle Filling Machine 2000 - 20000BPH
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000-20000BPH 200ML-20000ML |
|---|---|---|---|
| Material: | Stainless Steel 304/316 | Power: | 4.5KW |
| Product Name: | CGF8-8-3 Automatic Small Water/Drink/Soda Water Bottling Machine/Machinery/Equipment | Voltage: | 110V|380V/customized |
| Motor: | Siemens/ABB | Packing: | PET Glass Bottles/Cans |
| High Light: | automatic bottle filling machine,water filling machine |
||

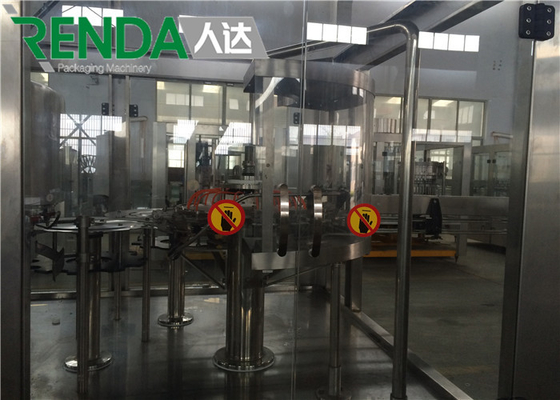

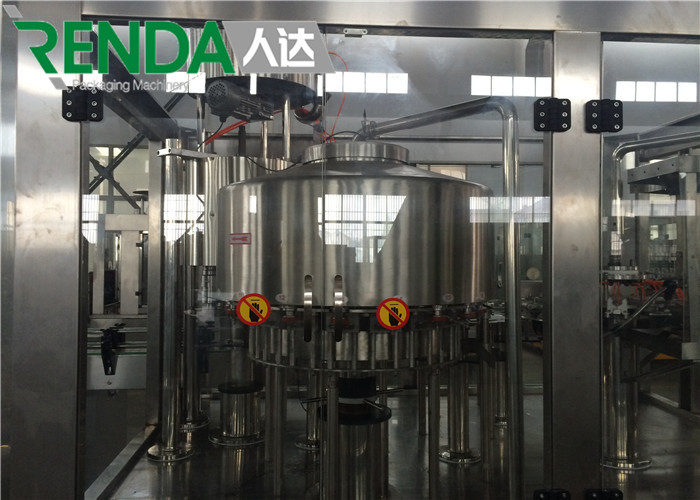

Automatic Small Water / Drink / Soda Water Bottle Filling Machine 2000 - 20000BPH
Quick Detail:
Production Name: Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V/Customized
Power: 3.8KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3100*2300*2800mm
Weight: 3.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.2-2L
Capacity: 2000-20000
Warranty: 1 year
Packing: Wooden Case Packing
After-sales Service Provided: Engineers available to service machinery overseas
Description:
This type machine is mainly used in filling&packing pure water,mineral water,baverage,wine,no contains gas liquid etc,it is suitable for PET bottle.
The PET bottle with screw capping way, it can be equipped with iron cap,aluminum cap and plastic cap
The machine contains Flushing, Filling and Capping three functions together in one.
It runs automatic by advanced MITSUBISHI PLC controller with reliable HMI touch screem.
The conveyor runs by frequency changer, it synchronous with the host inverter makes bottle feeding more stable and reliable.
Reliable photoelectric detection, high-efficiency fully automatic production,simple operation.
The washing, filling and capping will be finished just by one machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made of high-quality stainless steel 304/316
Main Parameter
| Model: | CGF 8-8-3 |
| Capacity:500ml(b/h) | 2000-3000 |
| Suitable Bottle:(mm) | 150-340 |
| Suitable Cap: | Diameter 50-100 (mm) |
| Filling Pressure: | 0.2-0.3 Mpa |
| Power: (KW) | 2.28 |
| Filling Temperature: | Indoor Temperature |
| Size: L×W×H (mm) | 2100×1500×2300 |
| Total Weight:(kg) | 2000 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
2000-4000 Bottles per hour water filling plant.pdf
6000-8000 Water Bottling Production Line.pdf
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
CGF8-8-3 Automatic Small Water/Drink/Soda Water Bottling Machine/Machinery/Equipment
