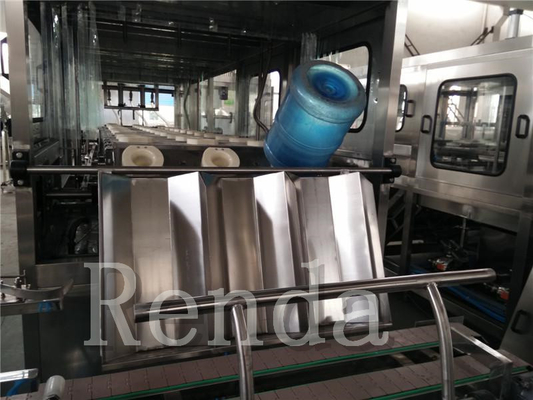

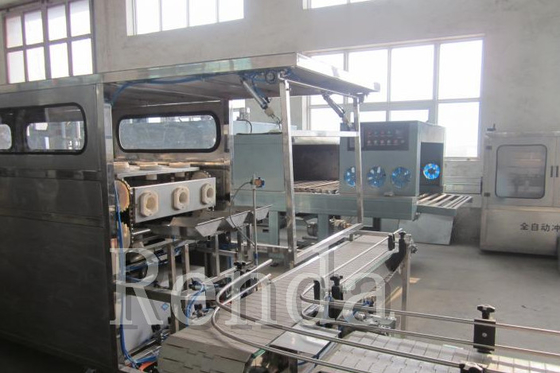

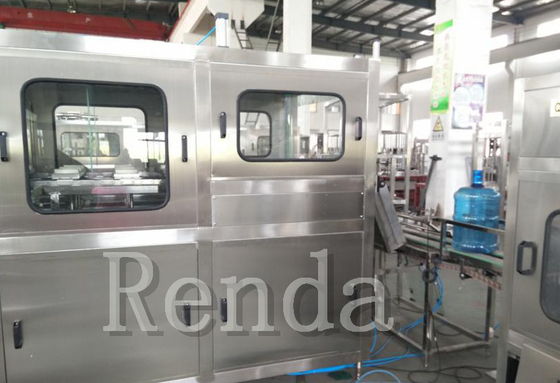

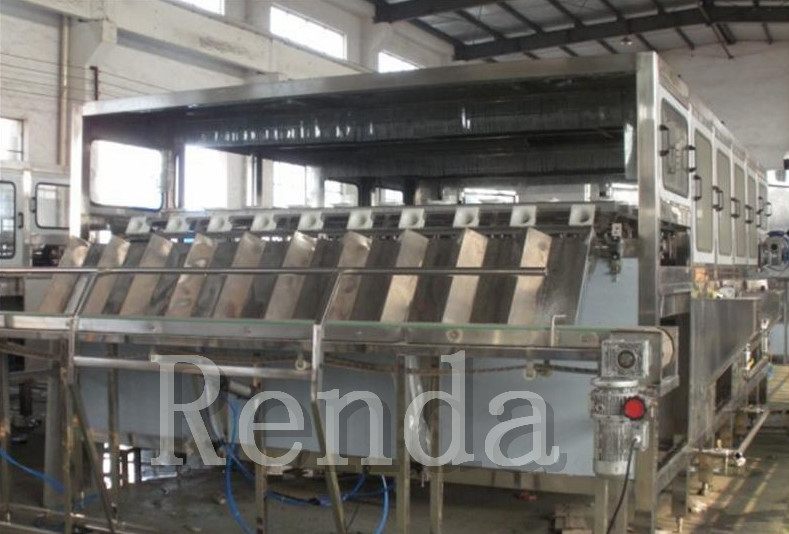

Automatic 5 Gallon Bucket Jar Mineral Water Barrel Filling Machine Electric Driven

Large Image : Automatic 5 Gallon Bucket Jar Mineral Water Barrel Filling Machine Electric Driven Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	QGF-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	20 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Automatic Grade:	Automatic\|automated	Capacity:	5 Gallon
Material:	Stainless Steel	Power:	1.75KW
Processing:	Bottle Packing Machine	Product Name:	5 Gallon Jar Water Bottle Filling Machine Liquid Beverage Bottling Equipment
High Light:	beverage filling machine , water filling machine

Automatic 5 Gallon Bucket Jar Mineral Water Barrel Filling Machine Electric Driven

Download for more details:

Quick Detail:

Driven Type: Electric
Voltage: 110/220/380V
Power: 1.75KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3790*650*1550mm
Weight:800kg
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle:5 gallon
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name:Barrel Filling Machine

Description:

This filling line specially produce 5 gallon barreled drinking water, those types(barrels/hour) are: 100 type, 150 type, 200 type, 300 type, 400 type, 450 type, 600 type, 900 type, 1200 type. It integrates bottle washer, filler and sealer into one unit.
In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically.
The line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products
Discharging. It is a new kind of barrelled water auto-producing line, which intergrates mechanism, electricity and pneumatics technologies together.

Applications:

Factory Price Automatic 5 Gallon Barrel Bucket Jar Mineral Water Filling Machine

Specifications:

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	3	4	8	12
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	Φ270*490	Φ270*490	Φ270*490	Φ270*490	Φ270*490	Φ270*490
Capacity(b/h)	100-120	200-240	300-400	600	900	1200
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6
Gas consumption(m3/min)	0.37	0.6	0.6	1.2	2.2	3
Motor power(kw)	1.75	3.22	4.8	8.5	8.5	8.5
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Overall dimension(LxWxH)(mm)	37906501550	35508001800 280011001800	355012001800 380011001800	365015001800 380011001800	220018602700 Without cleaning	256023502750 Without cleaning
Weigt(kg)	800	2800	4000	5500	7500	9500

Competitive Advantage:

1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine

Automatic 5 Gallon Bucket Jar Mineral Water Barrel Filling Machine Electric Driven
