Three / Four / Five Gallon Jar Water Barrel Filling Machine Bottling Plant Energy Saving
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Processing: | Bottle Packing Machine | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 5 Gallon | Driven Type: | Electric |
| Material: | Stainless Steel | Power: | 8.5KW |
| Voltage: | 110V|220V|380V | Name: | Barrel Filling Machine |
| High Light: | beverage filling machine,water filling machine |
||

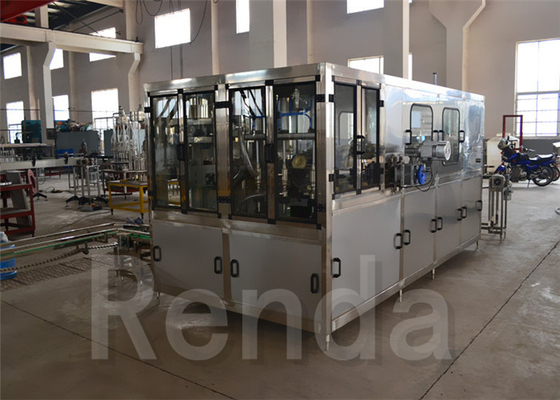

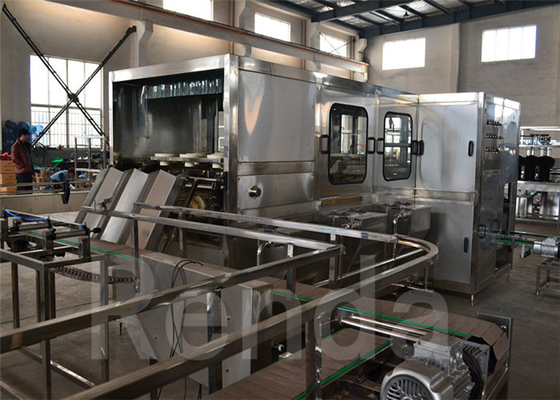

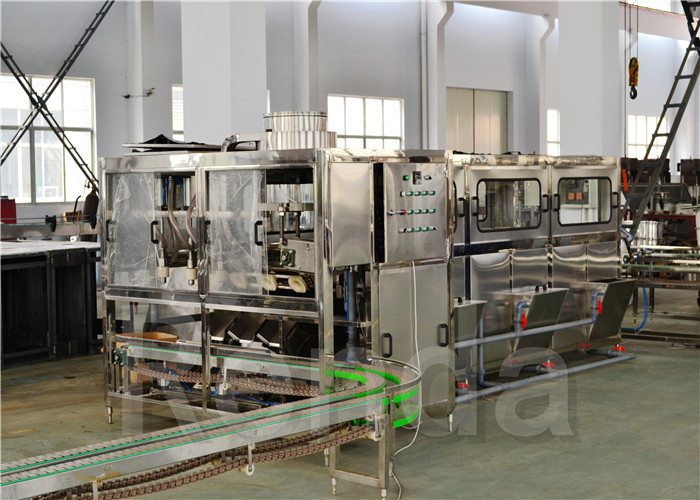

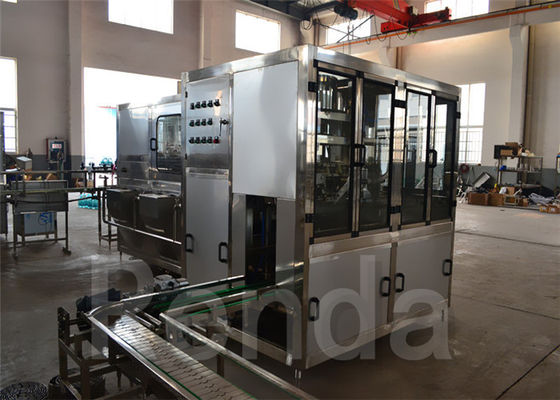

Three / Four / Five Gallon Jar Water Barrel Filling Machine Bottling Plant Energy Saving
Quick Detail:
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 8.5KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H):2200*1860*2700mm
- Weight:7500kg
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle:5 gallon
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Name:Barrel Filling Machine
Description:
1. This Barreled water filling machine specially produces 3~5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.
2. It integrates bottle washer, filler and sealer into one unit ,in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer, Washing solution can boused circularly .
3. The sealer can seal bottle caps automatically.
4. This barreled water filling machine equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy ,also this line can automatically carry out bottle feeding washing, sterilizing, filling capping, counting and products discharging .
5. It is a new kind of barreled water filling machine,which integrates mechanism, electricity and pneumatics technologies together.
Applications:
The QGF series filling machine is specially designed for the 5 gallon barrel.
Specifications:
Model |
WFC-100 |
WFC-300 |
WFC-450 |
WFC-600 |
WFC-900 |
WFC-1200 |
Filling heads |
1 |
2 |
3 |
4 |
6 |
12 |
Volume(Gallon) |
3&5 |
3&5 |
3&5 |
3&5 |
3&5 |
3&5 |
Barrel size(mm) |
270*490 |
270*490 |
270*490 |
270*490 |
270*490 |
270*490 |
Capacity(b/h) |
60-100 |
250-300 |
400-450 |
600-800 |
800-900 |
1000-1200 |
Gas pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
Gas consumption(m³/min) |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
Motor power(kw) |
1.38 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
Related Voltage(V) |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
|
Weight(kg) |
680 |
1500 |
2100 |
3000 |
3500 |
4500 |
Competitive Advantage:
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine
Three / Four / Five Gallon Jar Water Barrel Filling Machine Bottling Plant Energy Saving
Download for more details:
900BPH Barrel Filling Line.pdf
