Automated Hot Tea / Fruit Juice Filling Machine For Liquid Stainless Steel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice, Beverage | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Capacity: | 15000BPH|2000-4000BPH | Driven Type: | Electric Driven |
| Material: | Stainless Steel Material | Power: | 3.2KW |
| Processing: | Bottle Packaging Machine | Product Name: | Hot Tea Filling Plant Fruit Juice Packing System Filling Machine For Liquid Stainless Steel |
| Voltage: | 110V|220V|380V | ||
| High Light: | beverage filling machine,automatic bottle filling machine |
||

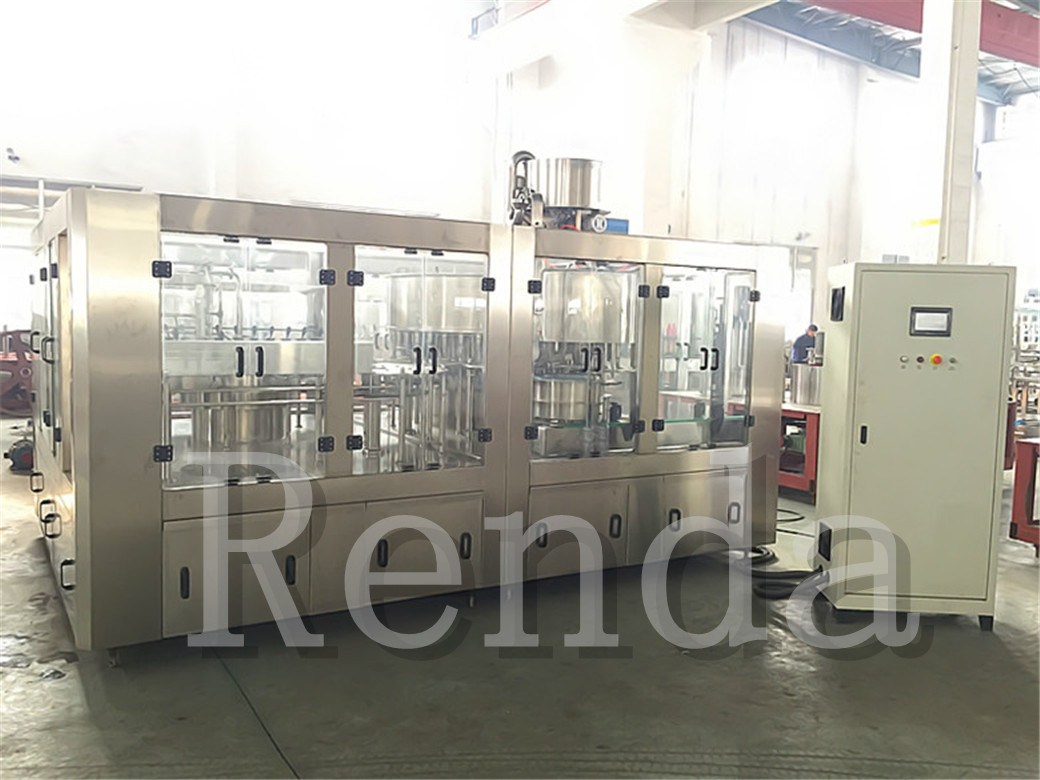

Automated Hot Tea / Fruit Juice Filling Machine For Liquid Stainless Steel
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
Quick Detail:
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 3.2KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 1900*1500*2500mm
- Weight:7T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overse
- Name: Juice Filling Machine
Description:
1.The main frame made of steel, 304 stainless steel exterior layer, 304 stainless steel frame, and adjustable feet.
2.Conveying system adopts star wheel, smooth transmission, stainless steel chain.
3.Number of washing head is 12 PCS, 304 stainless steel chassis wash pipes are heat-resistant.

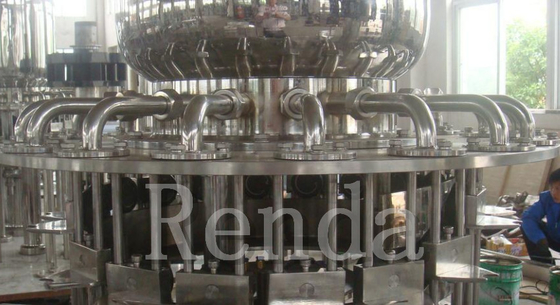

4.Number of filling valve is 12 PCS, and parts contacted with liquid are made of304L stainless steel. Inner surface is dealt with polishing. There is stainless steel returning tube, no dead space.
5.Number of capping head is 6 PCS, screw head using magnetic torque device to facilitate torque adjustment, the torque of capping head can be set in accordance with the actual production needs.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Specifications:
|
Main Technical Specifications |
|
|
Model |
RCGF12-12-6 |
|
Production Capacity (600ml)(b/h) |
2000-4000 |
|
Way of filling |
Hot filling |
|
Filling precision |
±5mm |
|
Feedback consumption |
≤8% |
|
Polyester bottle standard(mm) |
Bottle Diameterƒ50-ƒ92;Height:150-320 |
|
Suitable cap shape |
Plastic cap |
|
Water pressure of washing bottle(Mpa) |
0.2-0.25 |
|
Water consumption for water bottle(kg/h) |
800 |
|
Gas source pressure (M Pa) |
0.4 |
|
Total power(Kw) |
3.2 |
|
Total Weight(Kg) |
2000 |
|
Dimension(L*W*Hmm) |
1900*1500*2500 |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
Hot Tea Filling Plant Fruit Juice Packing System Filling Machine for Liquid Stainless Steel
