High Filling Speed 5KW 3000kg Juice Filling Machine / Equipment 110V 220V 380V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 15000BPH|2000-4000BPH | Material: | Stainless Steel SUS304 |
| Power: | 3.2KW | Product Name: | Juice Filling Machine With High Filling Speed 5KW 3000kg Juicer Equipment 6000BPH |
| Voltage: | 110V|220V|380V | ||
| High Light: | beverage filling machine,automatic bottle filling machine |
||

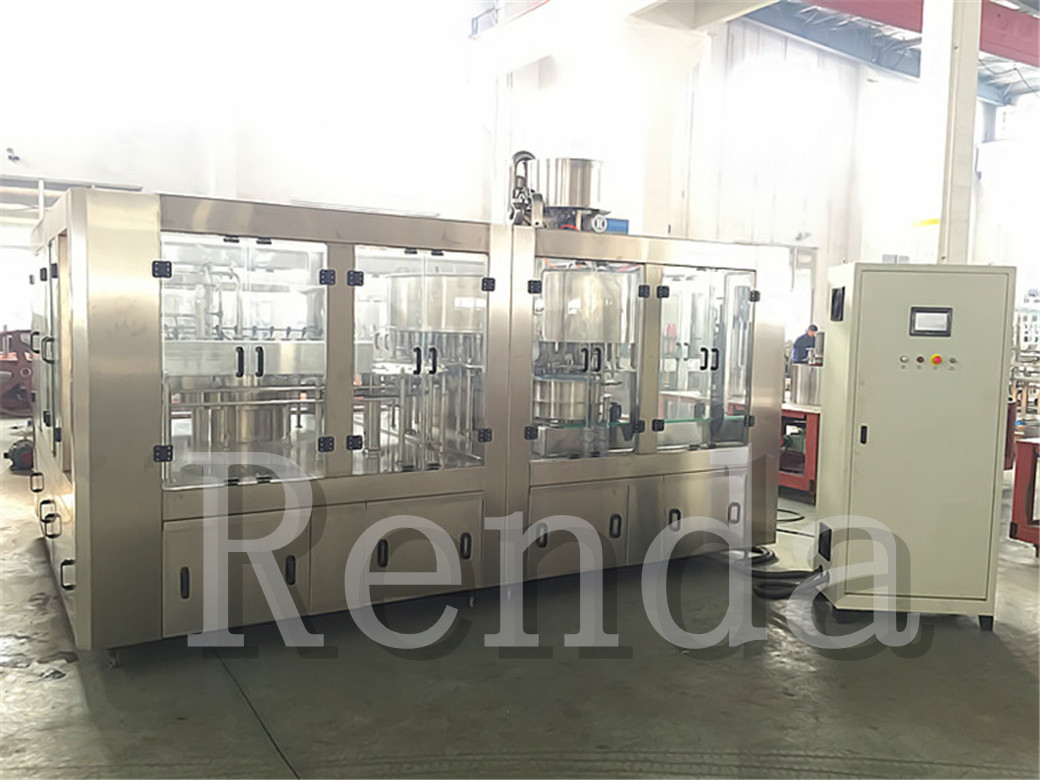

High Filling Speed 5KW 3000kg Juice Filling Machine / Equipment 110V 220V 380V
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
Quick Detail:
- Name: Juice Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 3.2KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 1900*1500*2500mm
- Weight:7T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overse
Description:
1, Multi rounds sanitizer spraying and cleaning technology to assure the safety of technics.
2, Mechanical type or electronic pulse type nozzle is of stable performance and water saving.
3, Non-contact filling head avoids cross contamination and ensures the safety of microorganism.
4, Betatron flowmeter gives the exact constant volume.
5, The capping machine is of aseptic type, self lubrication ceramics bearing, equipped with servo-motor.
6, The cap sterilizer is of soaking type or liner spraying type.
7, Automatic inspection, control and parameter record system.
8, All the key points of the production line have been taken aseptic monitoring.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Specifications:
| Model | RCGF12126 | RCGF18186 | RCGF24248 | RCGF323210 |
| Heads of washing,filling, sealing | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-10 |
| Production capacity | 2000-4000BPH | 4000-6000BPH | 6000-8000BPH | 8000-12000BPH |
| Suitable bottle diameter | Φ=40-80mm, H130-280mm, 330-2500ml | Φ=50-100mm, H150-320mm, 330-2500ml | Φ=50-100mm, H=150-320mm, 330-2500ml | Φ=50-100mm, H=150-320mm, 330-2500ml |
| Spraying Position | 5 | 5 | 6 | 7 |
| Filling Pressure | <0.4MPa | |||
| Total Power | 5.03kw | 5.03kw | 6.57kw | 8.07kw |
| Stainless steel | SS304 | SS304 | SS304 | SS304 |
| Electric voltage | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz |
| PLC | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Frequency converters | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Touch screen | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Circuit contactor | Siemens | Siemens | Siemens | Siemens |
| Overall dimension(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 |
| Weight | 2000kg | 3000kg | 4000kg | 5000kg |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
