Stainless Steel Mineral Water / Pure Water Bottle Filling Machine Production Line 4960 * 2280 * 2580mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Mineral Water | Automatic Grade: | Automated |
|---|---|---|---|
| Capacity: | 18000BPH|12000BPH|2000ml | Driven Type: | Electric |
| Material: | Stainless Steel SUS304 | Power: | 9KW |
| Processing: | Bottle Fillinging Machine | Voltage: | 110V|380V |
| High Light: | automatic bottle filling machine,water filling machine |
||
Stainless Steel Mineral Water / Pure Water Bottle Filling Machine Production Line 4960 * 2280 * 2580mm
Download:
Quick Detail:
- Name:Water Bottle Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 9KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 4960*2280*2580mm
- Weight: 8T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
Stainless Steel Mineral Water / Pure Water Bottle Filling Machine Production Line 4960 * 2280 * 2580mm
Description:
-for 200-2000ml bottle filling
-18000-20000 BPH
-no bottle no filling
-Easy operation and maintenance
1) We use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process od bottle-size-changing

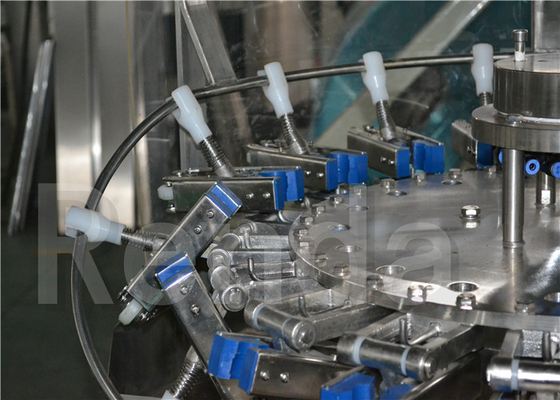

2) Neck-hanging technology is applied in bottle transportation.Instead of traditional starwheel,we use neck-hanging gripper to make bottle-size-changing easy,without equipment height adjustment,only arch board and starwheel need to be changed
3) Specially-designed rinser which are made of stainless steel are firm and durable,with no contact to screw part of the bottle to prevent second pollution

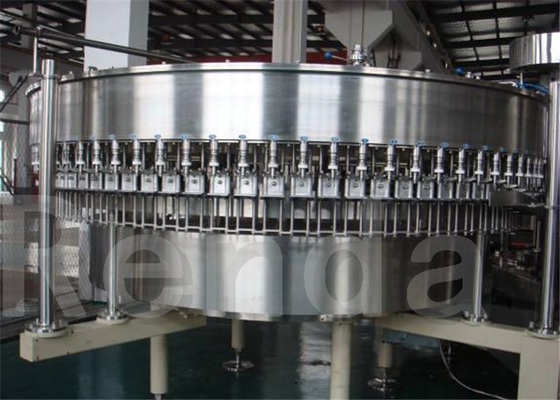

4) Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss
5) Splint of starwheel uses twist descending way to simplify the process of bottle-size-changing
6) Used for the production of mineral water and purified water
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Specifications:
| Model | Washing
heads |
Filling heads |
Capping heads |
Capacity(b/h) 500ml |
Motor power (KW) |
Overall dimension (mm) |
| CGF12-12-6 | 16 | 12 | 6 | 2000-4000 | 1.5KW | 2100x1400x2500 |
| CGF18-18-6 | 16 | 16 | 6 | 3000-5000 | 1.8KW | 2460x1720x2650 |
| CGF24-24-8 | 24 | 24 | 8 | 6000-9000 | 3.2KW | 3500x2500x2650 |
| CGF32-32-10 | 32 | 32 | 10 | 10000-12000 | 4.5KW | 4030x2220x2530 |
| CGF40-40-10 | 40 | 40 | 10 | 16000-20000 | 7.5KW | 4600x1800x2650 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Drinking Water Bottling Machine / Mineral Water Filling Plant / Pure Water Production Line
