Automatic Water Bottle Filling Machine / Wrapping Machine 380V CE Certification

Automatic Water Bottle Filling Machine / Wrapping Machine 380V CE Certification

Download:

18000-20000BPH Beverage filling machine.pdf

Quick Detail:

• Production Name: Water Bottle Filling Machine
• Driven Type: Electric
• Voltage: 110/220/380V
• Power: 9KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Dimension(L*W*H): 4960*2280*2580mm
• Weight: 8T
• Certification: CE,ISO
• Processing: bottle packing machine
• Suitable Bottle: 0.25-2L
• Material: stainless steel
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas

Description:

-for 200-2000ml bottle filling
-18000-20000 BPH
-no bottle no filling
-Easy operation and maintenance

Washing Part

1). The rotary disk is fully made of SUS304 stainless steel.

2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.

3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.

4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.

5). Washing part moves by a frame in the transmission system through the gear transmission.

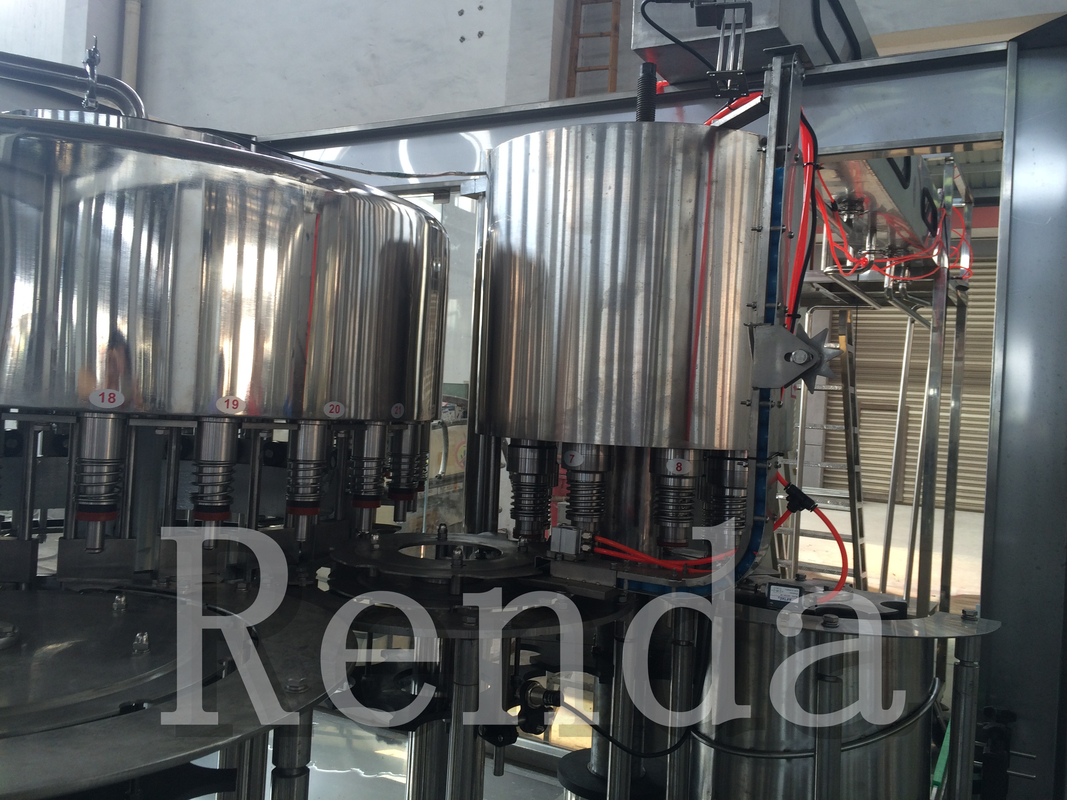

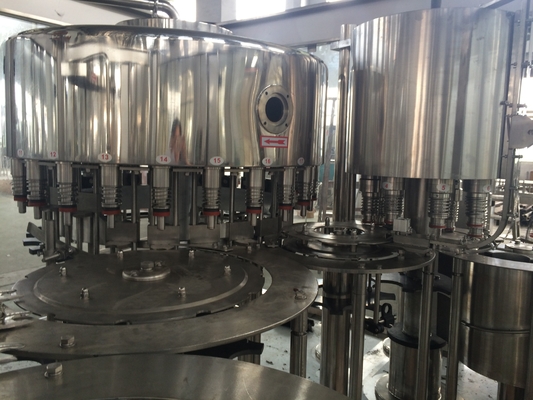

Filling part

1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.

2). The rotating disk is all made of SUS304 stainless.

3). Filling method is gravity filling.

4). Filling valve manufactured by SUS304.

5). The filling valve structure design is reasonable, the filling quantity is accurate.

Capping part

The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.

Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.

Applications:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

Specifications:

Competitive Advantage:

1. Best price & best quality

2. Custom-made details

3. Delievery in time.

4. Life-time good service.
