Product Details:
Payment & Shipping Terms:
|
Features: | Automatic | Driven Type: | Electric |
---|---|---|---|
Material: | Stainless Steel | Power: | 10 KW|11 KW|13 KW|15 KW |
Suitable Bottle: | Glass Bottle|PET Bottle | Voltage: | 50HZ|380V |
Name: | Automated Packaging Machines | ||
High Light: | liquid packing machine,beverage Packaging Machine |

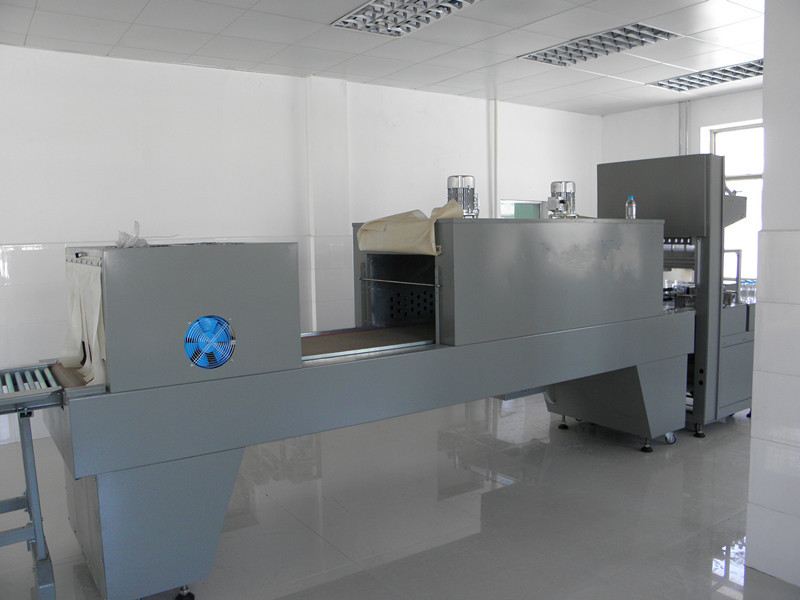

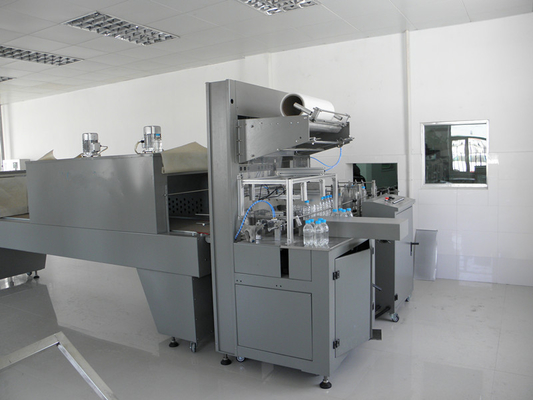

PET Bottle Shrink Wrap Automated Packaging Machines Stainless Steel Material 15KW
Quick Detail:
Description:
Adopts world advance components, stable and durable.
Sealing cutter is specially designed, Sealing line is firm, without cracking, and without sticking to the knife;
Automatic feeding, iteming, product pushing, film feeding and sealing;
Non-polar mechanical speed adjustment, adjust speed of feeding conveyor;
It can package several sets without tray in row 2, row3 and row4 according to requirement. It can replace the packing way via changeover switch on control panple;
Operation is easy and simple. It only takes 2-3 minutes to change different type;
According to different bottle shape, design automatic feeding device;
Direction of feeding conveyor can be based on customer needs, to be left or right feeding;
Suitable for PE shrink film.
Applications:

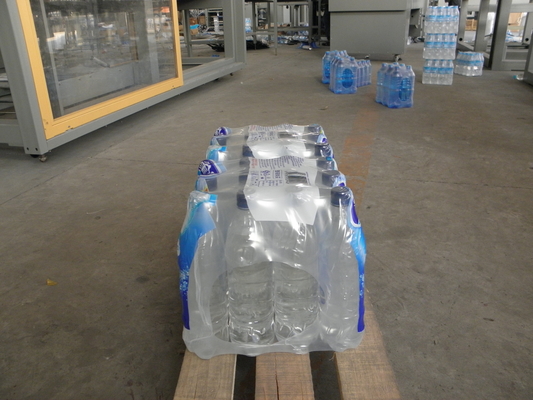

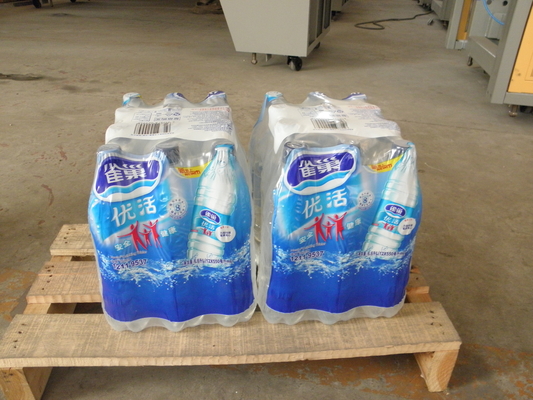

This type of cartoon packing machine is suit for beverage, drinking water, beer, wine and infusion bottle ect.
Specifications:
Machine type |
Production speed |
Outside dimension |
Power of installation |
Weight |
Power supply |
Compressed air |
Cardboard table |
W20 |
15 cartons/min |
5735x2745x1800 |
10 KW |
2500 KG |
380V 50Hz 24V DC/AC |
100NL/MIN |
Upright tilted |
W30 |
30 cartons/min |
8870x3000x1820 |
11 KW |
4500 KG |
380V 50Hz 24V DC/AC |
120NL/MIN |
Level from side |
W45 |
45 cartons/min |
8870x3000x1820 |
13 KW |
5000 KG |
380V 50Hz 24V DC/AC |
120NL/MIN |
Level from side |
W60 |
60 cartons/min |
12446x2000x2628 |
15 KW |
7500 KG |
380V 50Hz 24V DC/AC |
250NL/MIN |
Level from bottom |
Packing type: Total wrap around |
Cardboard type: Pre-shaped flat cardboard |
PET Bottle Shrink Wrap Automated Packaging Machines Stainless Steel Material 15KW
