Water Production Line Automated Packaging Machines Bottle PE Film Shrink Wrapped

Water Production Line Automated Packaging Machines Bottle PE Film Shrink Wrapped​

 Name:Sticker Labeling Machine

Technical parameter

Facility basic configuration

Taiwan Weinview touch screen, Panasonic PLC controlling system
Taiwan AIRTAC pneumatic component 1set
Taiwan Teco frequency converter 3 set
Stainless steel wing heating tube 12 piece
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed-regulation machine.
South-Korea Autonics photoelectric switch, proximity.
Thermo sealing knife Aluminum-mould heating board, even temperature, long life, our company special production.
Whole machine plastic-sprayed, machine rack adopt to high-quality carbon steel, main part adopt to stainless steel.
Bottle convey machine length 2600mm
Carton and wrappage film pack separately.

Product description

Frequency converter speed adjusttwo segment convey device.

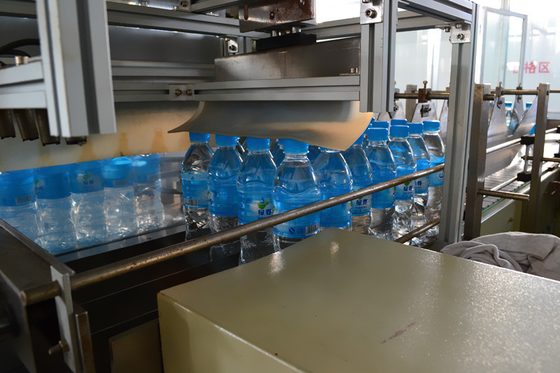

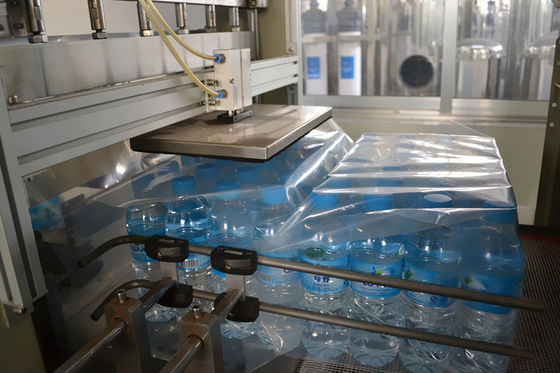

Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.

Proximity switch control film length.
Touch screen, PLC system greatly increase facility movement reliability.
Double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
Super big wind-volume cooling system, ensure quickly get into shape.
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency limitless speed adjust convey belt frame.

Convey belt height can make according client requirement, adjust range: ± 50mm
Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
Wing stainless steel heating system, endurance.
Meet with product instant stop requirement product-bearing rack device ensure production line consistency.

Technical condition and requirement

1. Package type
(1) 350/500/550/600ML big bag: 4*6, 4*5 small bag3*4, 3× 5 four type of package.
(2) 1L/1.5L/2L/2.5L big bag: 3× 3, 3× 4; Small bag2× 2, 2× 3 four type of package
2. Regarding can, we suggest adopt to package with tray, pack steadily.
3. Package speed 8-15bag/min

4. Meet with pre-treatment filling speed of filling machine.
(1) 350/500/550/600ML big bag: 4*6, 4*5, (12000-15000b/hr)small bag: 3*5, 3*× 4, (8000-10000b/hr).
(2)1L/1.5L/2L big bag 3*4, 3*3(5000-6000b/h) small bag 2*3, 2*2(3000-4000b/h).
5. Package material: PE thermo shrinkage film width(200-600mm),
Thickness(0.08-0.12mm)



Download for more details:
Automatic Shrink Packing Machine.pdf
