Drinking Water Purification RO Water Treatment Systems For Large Water Treatment Plant

Drinking Water Purification RO Water Treatment Systems For Large Water Treatment Plant

Quick Detail:

Name:RO Water Treatment Systems

Driven Type: Electric

Voltage: 110/220/380V

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle:Glass Bottle/Pet bottle

 Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Description:

Introduction :
Reverse osmosis water treatment systme is specially used for drinking water filter system ,can reach the national standards totally after treatment by this device, it's the most ideal equipment for beverage water factory .
Including silica sand fitler ,active carbon filter ,water softener,precision filter,Reverse Osmosis,Uv sterilizer,ozone sterilizer .
Function:
Silica sand filter:
to remove most of suspended solids, colloidal and granular mechanical impurities.
Active carbon filter:
to remove organic matter and residual chlorine.
Sodium ion exchanger:
to remove calcium and magnesium ions in the water ,so as to soften the water
Precision filter :
to cut off mechanical impurities and particles greater than 5μM leaks from preposing equipment and pipeline.

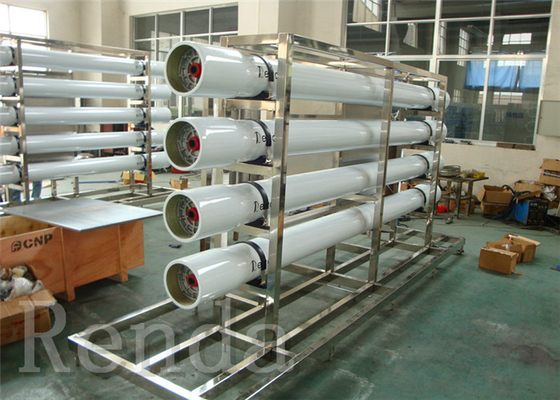

Revese Osmosis:
It is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane,it is called reverse osmosis.
it can remove more than 97% of the soluble salt and above 99% of the colloid ,microorganism,particles and organic materials ,becoming the best first choice equipment in the engineering of modern purified water ,highly purified water and space water ,the most highlighted features are low energy consumption ,no pollution,simple techniquie ,high qulaity water and convenient operation and maintenance
UV sterilizer:
To kill backteria that my also pass through the reverse osmosis system
Ozone sterilizer:
some bacterias may not be killed by the UV ,the sterilizer uses ozone to kill those bacterias
Flow Chart:
Raw water tank→ Water pump→Silica sand fitler→Active carbon filter→water softner →Precision filter →Reverse Osmosis→Uv sterilizer→Ozone sterilizer→finished water tank

Applications:

1. Mineral Water/Pure Water Treatment Equipment
2. 1T-20T/H water treatment,RO
3. Using water,juice/Conbonated drinks production

Competitive Advantage:

Water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter). All these machines made by stainless steel food stage.
