Stainless Steel Reverse Osmosis Drinking RO Water Treatment Systems Easy Operation

Stainless Steel Reverse Osmosis Drinking RO Water Treatment Systems Easy Operation

Quick Detail:

• Driven Type: Electric
• Voltage: 110/220/380V
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Certification: CE,ISO
• Material: stainless steel
• Processing: bottle packing machine
• Suitable Bottle:Glass Bottle
•  Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas
• Name:RO Water Treatment Systems

Description:

1. Water feeding pump

Using branded pump to ensure the raw water flow and water pressure as required, this is first step to ensure the whole

water treatment system can run stably with the producing capacity required and quality required

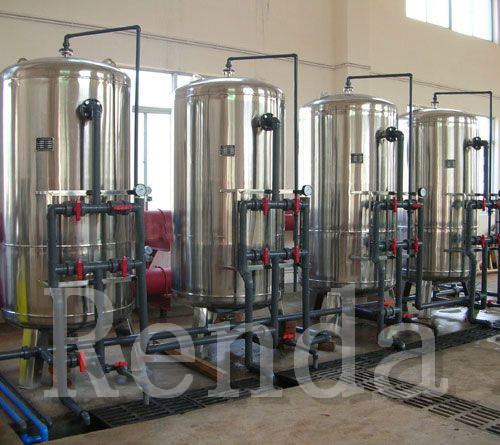

2. Quartz Sand filter

Main usage: Clear the sediment, manganese, rust, colloid material, mechanical impurities, suspended solid and other

particles whose volume is more than 20 UM.The effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L, iron

content of less than 0.05mg / L, SDI less than or equal to 5.

3.Active carbon filter

Usage: the active carbon filter is used for removing the pigment, smell, chemical and biological organisms, reducing the

pesticide pollution and other harmful pollutants in the water.

The active carbon in the filter have strong adsorption capacity, and it can clear the organic material which is not cleared

by quartz sand filter, and also will adsorb the residual chlorine in the water, and then the chlorine content in the water

will be less than 0.1ML/m³, SDI less than or equal to 4, which will protect the membrane in reverse osmosis device.

As we know the reverse osmosis membranes are very sensitive to chlorine.And also the the active carbon filter can

adsorb part of the metal ions in the water.

4. Sodium filter

Cationic resin in the precise filter is mainly be used for softening the water, reduce the hardness of water.

As we know the hardness is mainly because of the calcium( Ca 2+), magnesium(Mg 2+) ion composition. After passing

the filter, the Ca2 +, Mg2 + will be exchanged by sodium cationic.

5. Precesie filter

Usage: Clear the final big volume substance in water , to protect the membrane in reverse osmosis.

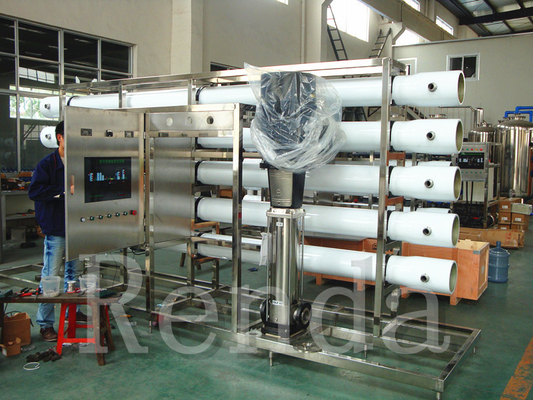

6. Reverse osmosis device

The membrane in the reverse osmosis device only with 0.001 micron pore size, can be used for remove dissolved solids

and bacteria, viruses, etc., desalination rate of more than 99.6 percent, and will arrive the National standard pure water.

Main parts including security filter, high-pressure pump, and reverse osmosis membrane, stainless machine frame, etc.

Specification:

Applications:

1.Mineral Water/Pure Water Treatment Equipment
2.1T-20T/H water treatment,RO
3.Using water,juice/Conbonated drinks production

Competitive Advantage:

Water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter). All these machines made by stainless steel food stage

Stainless Steel Reverse Osmosis Drinking RO Water Treatment Systems Easy Operation

Download for more details:

RO watertreatment system.pdf
