Customized Semi Automatic Bottle Blowing Machine 220V 380V For PET Plastic Containers
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Automatic | Application: | Bottle|water Bottle |
|---|---|---|---|
| Plastic Processed: | PET|plastic | Voltage: | 220V|380V |
| Volume: | 0.1- 2L | Name: | Bottle Blowing Machine |
| Material: | SUS 304 316 | ||
| High Light: | bottle blow molding machine,automatic blow moulding machine |
||
Customized Semi Automatic Bottle Blowing Machine 220V 380V For PET Plastic Containers
Quick Detail:
Name:Bottle Blowing Machine
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Model Number: CM-8Y
Description:
1 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform,the perform rotated and heated equally.

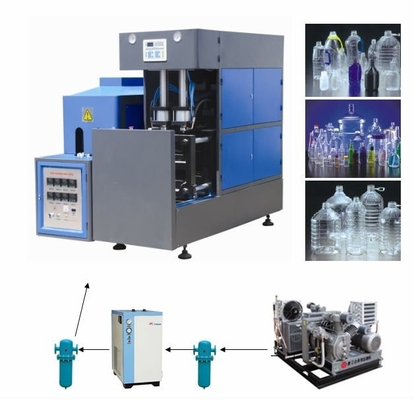

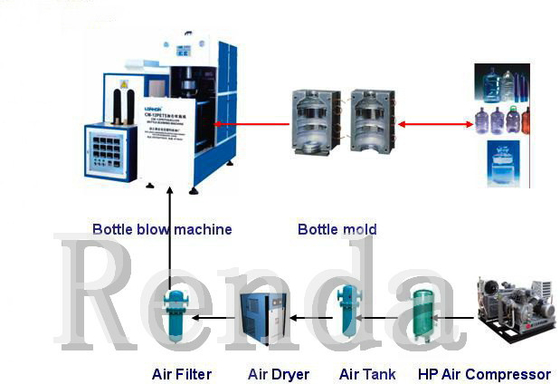

3. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
4. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
5. The machine can be operated in the step-by-step mode and the semi-auto mode.
Low rejection rate: less than 0.2 percent.
Applications:
PET Preform Injection Blow Moulding PET Blowing Machine Manufacture 2000-8000BPH is suitable for producing PET plastic containers and bottles in all shapes.
Specifications:
| Main parameter: | ||
| Model | CM-8Y | |
|
Main machine
|
Product material | PET/PC |
| Volume | 10ML-2000ML | |
| Theoretical output | 1600-1900PCS/H | |
| Preform length | 15mm-260mm | |
| Preform inner diameter | Φ15mm-100mm | |
| Max. mould plate Dimension(L x W) | 400x450mm | |
| Max.mould thickness | 370mm | |
| Clamping force | 100KN | |
| Mould opening stroke | 350mm | |
| Blowing Air Pressure | <=3.0 Mpa | |
| Working Pressure | <=1.0mpa | |
| size and weight | Main machine (L x W x H) | 160×62×165cm×2 |
| Main machine weight | 550Kg×2 | |
| Heater (L x W x H) | 187×63×145cm | |
| Heater weight | 250Kg | |
| Power | 14 kw | |
Competitive Advantage:
*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
Custimized Semi Automatic Bottle Blowing Machine 220V 380V Blowing Machine Price
Download for more details:
Full Automatic Bottle blowing machine.pdf
