ISO 1500 BPH Bottle Blowing Machine 380V Automatic Blow Moulding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Automatic | Total Power: | 48KW |
|---|---|---|---|
| Application: | Bottle|water Bottle | Plastic Processed: | PET|plastic |
| Voltage: | 380V | Material: | SUS 304 316 |
| High Light: | bottle blow molding machine,automatic blow moulding machine |
||

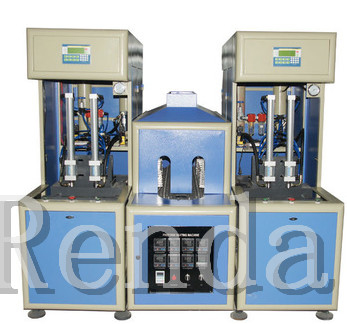

ISO 1500 BPH Bottle Blowing Machine 380V Automatic Blow Moulding Machine
Quick Detail:
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Model Number: CM-8Y
- Name:Bottle Blowing Machine
Description:
1.This semi automatic pet bottle blowing machine is suitable for beverage manufacturers
2. Economic semi automatic PET bottle blowing machine price
3. For making PET plastic bottles for mineral water, pure water, no carbonated water, juice, oil, carbonated beverage etc.
4. With certificates of CE and SGS and makes PET plastic bottles for mineral water, pure water, no carbonated water, juice, oil, carbonated beverage etc.
5. 1 years of guarantee
6.The PET bottle blowing machine has 1/2/4 moulding heads
7. Moulding heads can be changed as the customers require.
8. Suitable for small scale PET bottles manufacturers
9.This PET bottle blowing machine can be a important part of a whole water filling & packing line.
10. And also we can set a whole packing line of beverage production for our customers.
11. We are trying to approach the best pet bottle blowing machine price.
Applications:
PET Blowing Machine Blow Moulding Process Blow Moulding Machine 4000BPH is suitable for producing PET plastic containers and bottles in all shapes.
Specifications:
| TYPE | ITEM | UNIT | TECHNICAL DATA |
| CONTAINER | Product material | PET/PC/PP | |
| Container volume | L | ≤2 | |
| Theoretical Output | Pcs/hr | 800-1000 for 1L bottle | |
| Max. bottle height | mm | 360 | |
| Max.bottle diameter | mm | 120 | |
MOULDING |
Max.moula plate dimension(LxW) | mm | 340 |
| Max.mould thickness of mould | mm | 200 | |
| Clamping force | KN | 80 | |
| Mould opening stroke | Mm | 150 | |
| AIR COMPRESSOR | Working pressure | Mpa | 0.8-1.0 |
| Air compressor for blowing | Mpa | 2.0-3.0 | |
| MAIN MACHINE ELECRICITY | Power | KW | 10 |
| Voltage/Frequency | V/HZ | 380-240-110/50-60 | |
| MACHINE SIZE AND WEIGHT | Main machine(LxWxH) | M | 1500×600×1750 |
| Main machine weight | KG | 560 | |
| Heater(LxWxH) | M | 1800×630×1380 | |
| Heater weight | KG | 270 | |
| SAFETY | SAFETY INTER-LOCKING DEVICE | Auto-emergency alarm | |
Competitive Advantage:
*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
ISO 1500 BPH Bottle Blowing Machine 380V Automatic Blow Moulding Machine
Download for more details:
Full Automatic Bottle blowing machine.pdf
