Full Automatic Plastic Bottle Blowing Machine 48KW Blow Moulding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Automatic | Total Power: | 48KW |
|---|---|---|---|
| Application: | Bottle|water Bottle | Plastic Processed: | PET|plastic |
| Product Name: | Full Automatic Plastic Bottle Making Machine Price Molding Machine Price Blow Moulding Companies | Voltage: | 380V |
| Name: | Bottle Blowing Machine | Material: | SUS 304 316 |
| High Light: | bottle blow molding machine,automatic blow moulding machine |
||

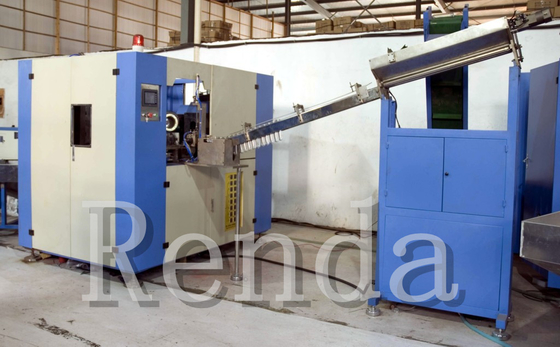

Full Automatic Plastic Bottle Blowing Machine 48KW Blow Moulding Machine
Quick Detail:
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Model Number: CM-A6
- Name:Bottle Blowing Machine
Description:
1)Advanced computer-controlled system with stable performance.
2)Completely automatic process, from feeding preforms through to finishing blowing. Highly efficient and time saving.
3) Uses an infrared heater with strong penetration force, and adopts the preform suspension auto-revolving method for fast and reliable results.
4) Adjustable light and reflecting plate in heating zone for differently structured preforms.
5) Equipped with built-in safety lock for each mechanical program will automatically revert to the safe status if any problems occur.
6) Cylinder-driven action, automatic temperature adjustment, with low noise, zero pollution and other benefits as a result of not using oil pumps.
7) Strong clamping force due to using mechanical double-arm mold clamping.
8) Fully automated, highly efficient, quick and safe process. Requires low level of investment, with trouble-shooting, .....maintenance and other benefits available...........
Applications:
Full Automatic Plastic Bottle Making Machine Price Molding Machine Price Blow Moulding Companies is suitable for producing PET plastic containers and bottles in all shapes.
Specifications:
| Model | CM-A2 | CM-A4 | CM-A6 |
| Power supply | AC380V 50Hz tri-phase | ||
| Production speed(based on 500ml) | 1800BPH | 3600BPH | 4800BPH |
| Bottle shape | Round, square, elliptic rectangular | ||
| Applicable height of bottle | 50~350(mm) | ||
| Applicable diameter of bottle | 20mm ~ 100mm | ||
| Applicable neck diameter of bottle | 15mm-38mm | ||
| Applicable material of plastic | PET | ||
| Auxiliary equipment (pre-form unscramble) | 276*106*186mm | ||
| Outer dimension of main machine(mm) | 3300*1550*1970 | 3650*1550*1970 | 4300*1550*1970 |
| Weight: | 4500KG | 5300KG | 7000KG |
| Power | 50KW | 60KW | 80KW |
Competitive Advantage:
*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
Full Automatic Plastic Bottle Blowing Machine 48KW Blow Moulding Machine
Download for more details:
Full Automatic Bottle blowing machine.pdf
