200 - 2000ml PET Bottle Blowing Machine Semi Automatic Injection Blow Molding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Suit Bottle: | PET Bottle | Products Name: | Semi Automatic Injection Blow Molding Machine PET Bottle Blowing Machine 100-2000ml |
|---|---|---|---|
| Capacity: | 1000-1500BPH | Bottle Sizes: | 200-2000ml |
| Name: | Bottle Blowing Machine | Voltage: | 380v |
| Material: | SUS 304/316 | ||
| High Light: | blow moulding machine,bottle blow molding machine |
||
200 - 2000ml PET Bottle Blowing Machine Semi Automatic Injection Blow Molding Machine
Quick Detail:

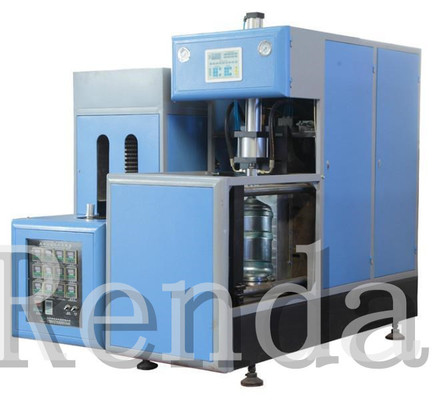

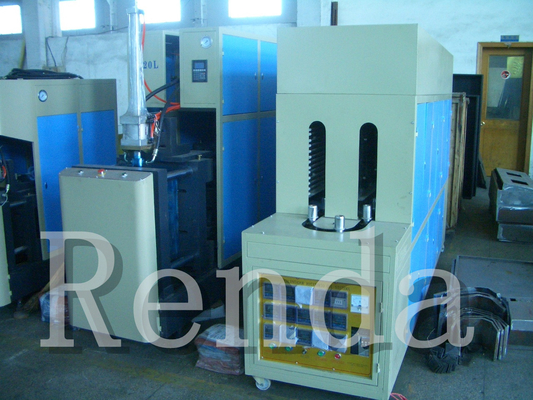

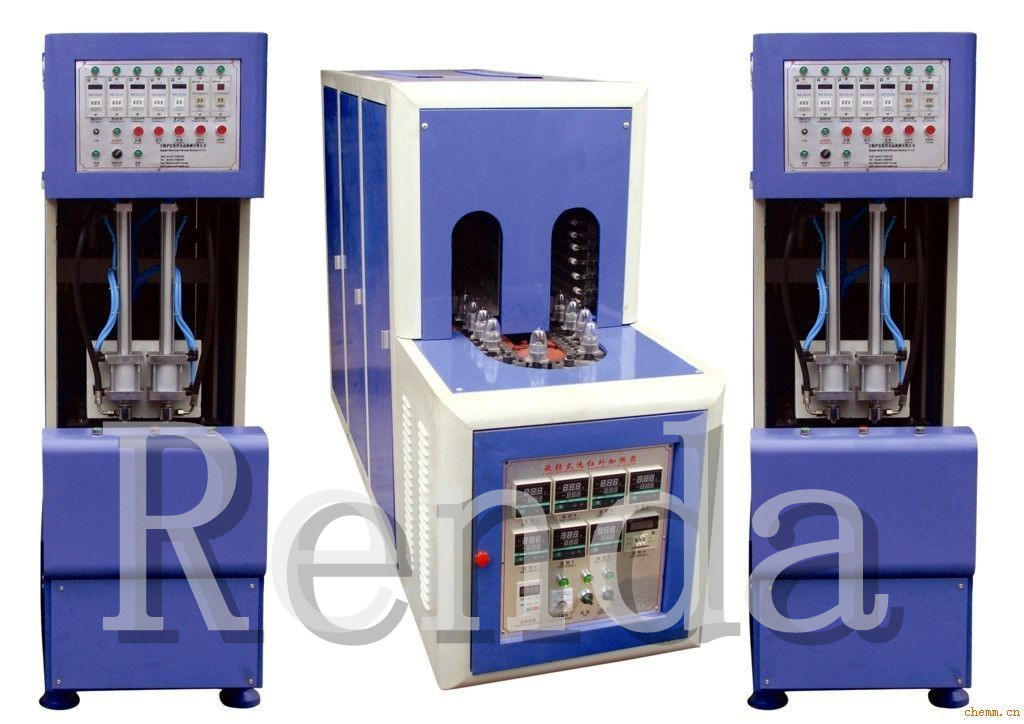

CM-8Y semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and
bottles from 200-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink
bottle,
pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to
heat the perform ,the perform rotated and heated equally.

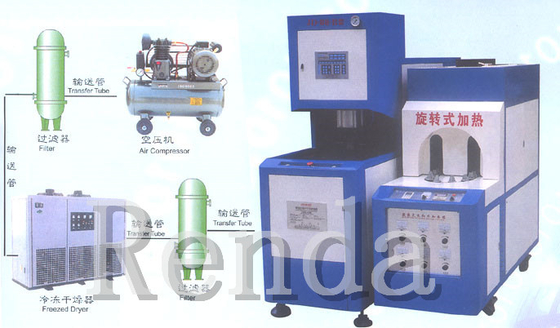

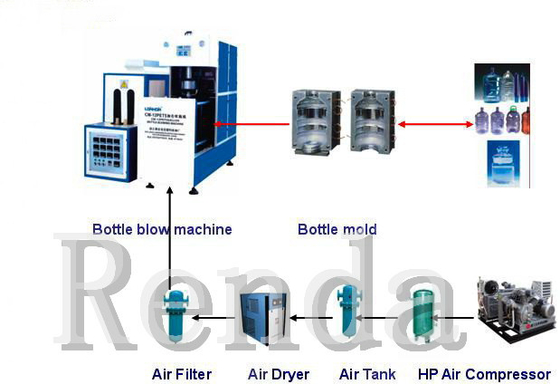

● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet
the different requirements for the action and blow .It can provide sufficient and steady high pressure
for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Name: Bottle Blowing Machine
Parameters:
| Main Technical parameters | |||
| TYPE | ITEM | UNIT | CM-8Y/ CM-1A TECHNICAL DATA |
| CONTAINER | Product material | PET/PC/PP/PE | |
| Container volume | L | 0.1-2 (4-cavity) 3-6(1-cavity) | |
| Theoretical output | Pcs/hr | 0.1-2.5L:850 3-6L:400 | |
| Preform length | mm | 360 | |
| Preform inner diameter | mm | φ180 | |
| MOULDING | Max.mould plate dimension(L×W) | mm | 420×500 |
| Max.mould thickness | mm | 250 | |
| Clamping force | KN | 150 | |
| Mould opening stroke | mm | 240 | |
| AIR COMPRESSOR | High pressure compressor | M3/Mpa KW | ≥0.63/3.0 11 |
| Air pressure for blowing | Mpa | 2.0-3.0 | |
| MAIN MACHINE ELECTRICITY | power | KW | 6 |
| Voltage/Frequency | V/Hz | 380-240-110/50-60(3-phase) | |
| MACHINE SIZE AND WEIGHT | Main machine(L×W×H) | M | 1.55×0.62×2.00 |
| Main machine weight | T | 0.6 | |
| Heater(L×W×H) | M | 1.10×0.5×1.16 | |
| Heater weight | T | 0.22 | |
| High pressure compressor(L×W×H) | M | 1.90×0.75×1.50 | |
| Air filters | kg | 10×2pcs | |
| SAFTY Auto-emergency alarm |
Safety inter-locking Device |
||
Download for more details:
Semi Automatic Bottle blowing machine.pdf
Semi Automatic Injection Blow Molding Machine PET Bottle Blowing Machine 100-2000ml
