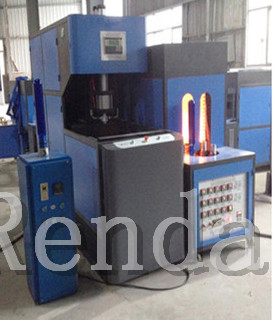

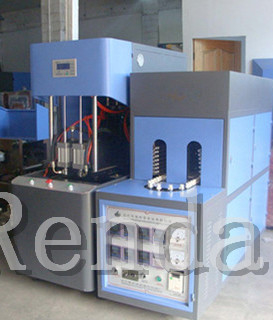

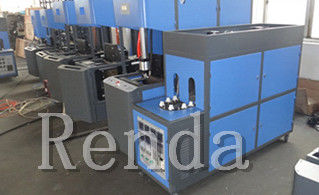

2000ml Semi Automatic Bottle Blowing Machine Injection Molding Machine PET

Large Image : 2000ml Semi Automatic Bottle Blowing Machine Injection Molding Machine PET Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CM-8Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Features:	Semi Automatic	Application:	Water Bottle
Plastic Processed:	PET	Product Name:	2000ml Semi Automatic Bottle Injection Molding Machine Blowing Machine
Voltage:	220V	Volume:	2L
Material:	SUS 304 316
High Light:	blow moulding machine , bottle blow molding machine

2000ml Semi Automatic Bottle Blowing Machine Injection Molding Machine PET

Quick Detail:

Condition: New
Application: Bottle
Plastic Processed: PET
Blow Moulding Type: Stretch Blow Moulding
Automatic: Yes
Model Number: CM-8Y
Name: Bottle Blowing Machine

Description:

1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.

2. Pneumatic elements from FESTO (German) and SMC (Japan)

3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.

4. Malfunction alert and diagnostic units allow easy maintenance.

5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..

6. Oven can be made according the different preform requirements of customers

Applications:

CM-8Y Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 2L.

Specifications:

Main Technical parameters
TYPE	ITEM	UNIT	SW-50\|\|B/MC-880 TECHNICAL DATA
CONTAINER	Product material		PET/PC/PP/PE
	Container volume	L	0.1-2.5(2-cavity) 3-6(1-cavity)
	Theoretical output	Pcs/hr	0.1-2.5L:850 3-6L:400
	Preform length	mm	360
	Preform inner diameter	mm	φ180
MOULDING	Max.mould plate dimension(L×W)	mm	420×500
	Max.mould thickness	mm	250
	Clamping force	KN	150
	Mould opening stroke	mm	240
AIR COMPRESSOR	High pressure compressor	M3/Mpa KW	≥0.63/3.0 11
AIR COMPRESSOR	Air pressure for blowing	Mpa	2.0-3.0
MAIN MACHINE ELECTRICITY	power	KW	6
MAIN MACHINE ELECTRICITY	Voltage/Frequency	V/Hz	380-240-110/50-60(3-phase)
MACHINE SIZE AND WEIGHT	Main machine(L×W×H)	M	1.55×0.62×2.00
	Main machine weight	T	0.6
	Heater(L×W×H)	M	1.10×0.5×1.16
	Heater weight	T	0.22
	High pressure compressor(L×W×H)	M	1.90×0.75×1.50
	Air filters	kg	10×2pcs
SAFTY Auto-emergency alarm		Safety inter-locking Device
