Quick Detail:

Name:Can Filling Machine

Driven Type: Electric

Voltage: 110/220/380V

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): null

Weight:1900kg

Certification: CE,ISO

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overse

Description:

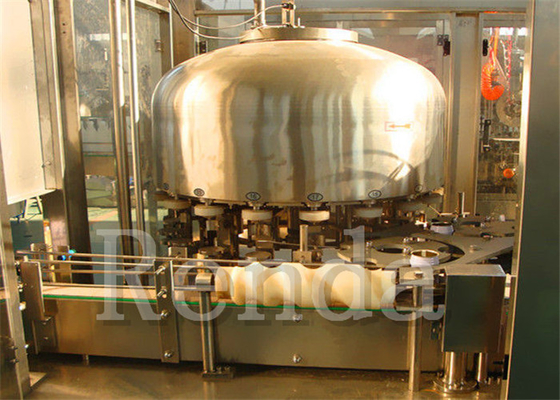

This Beer canning Machine canning-seaming 2-in-1unit is used to produce Aluminumcan beer. It can finish all the process such as beer canning and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency. It’s design combines with the actual situation in our country after the introduction and absorption from foreign developed technology.

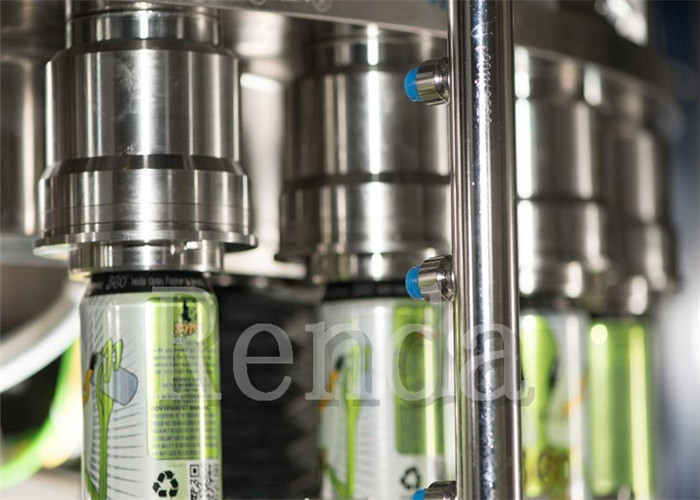

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and ensure that it only starts to filling when there is a can, otherwise it will stop. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet state.

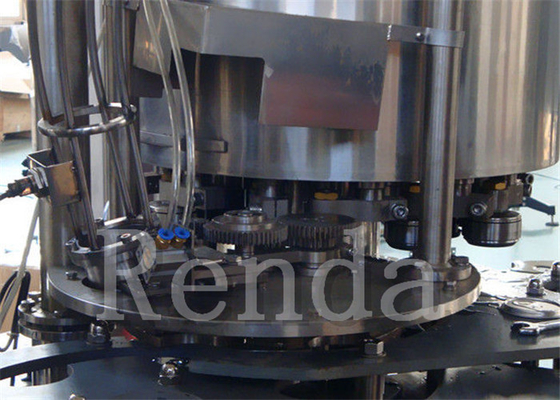

The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of higher efficiency, lower noise and smoother operation. It adopts frequency conversion stable speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure they’re at same working pace. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON or ABB.

Applications:

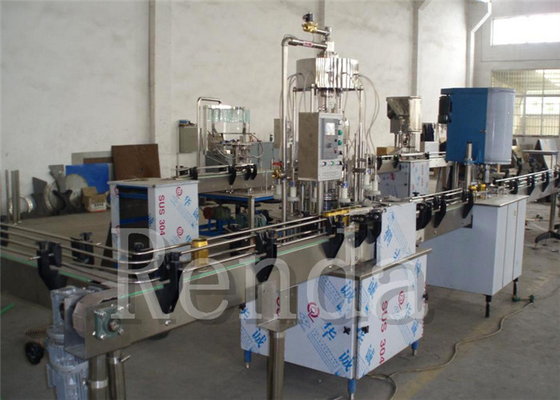

This Pop Can filling machine production line is suitable for the production of all kinds of drinks contained in three piece can, such as cola, aerated water, ice tea, etc

Specifications:

Competitive Advantage:

Pop Can filling machine
1.Filling all kind of drinks
2.Suitable bottle:iron can
3.Capacity:as required
