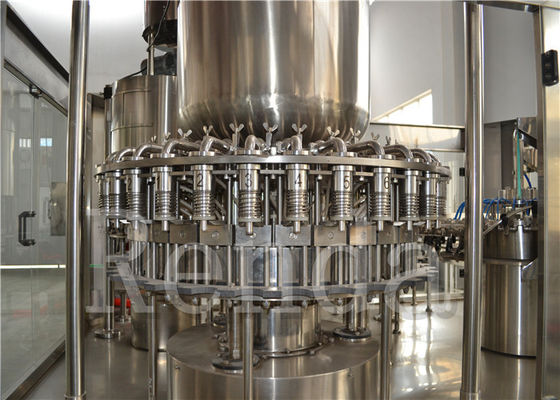

Grape Wine Washing Filling Capping Machine 3 - IN -1 Wine Filling Machine For Grape Juice / Apple Juice

Large Image : Grape Wine Washing Filling Capping Machine 3 - IN -1 Wine Filling Machine For Grape Juice / Apple Juice Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	CGFD

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Application:	Wine\|Beer\|Red Wine	Automatic Grade:	Automatic\|automated
Driven Type:	Electric	Material:	Stainless Steel
Processing:	Bottle Packing Machine	Suitable Bottle:	Glass Bottle
Voltage:	110V\|220V\|380V	Name:	Wine Filling Machine
High Light:	water filling machine , automatic bottle filling machine

Grape Wine Washing Filling Capping Machine 3 - IN -1 Wine Filling Machine For Grape Juice / Apple Juice

Quick Detail:

Name:Wine Filling Machine

Driven Type: Electric

Voltage: 110/220/380V

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Certification: CE,ISO

Material: stainless steel

Processing: bottle packing machine

Suitable Bottle:Glass Bottle

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Description:

Grape Juice Grape Wine Washing Filling Capping Machine 3-IN-1 Apple Juice Filling Machine

Product Description:

1.The filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

2.The machine is used in filling juices,beverage in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

3.The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

4.The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

5.It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

Applications:

The CGFD series filling machine is specialized in wine filling.

Specifications:

Grape Juice Grape Wine Washing Filling Capping Machine 3-IN-1 Apple Juice Filling Machine

Technical parameter:

Model	RCGF14-12-5	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12	RCGF50-50-12	RCGF60-60-15	RCGF80-80-20
washing, filling and capping heads	14-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity (600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification (mm)	φ=50-110=170 330-2250ml
Washing pressure (kg/cm 2 )	2-3
Motor power (kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw	11kw	15kw	19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	7680×6640 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150
