Customized Glass Rinsing Bottling Capping Wine Filling Machine for Beer Wine Whiskey Vodka

Customized Glass Rinsing Bottling Capping Wine Filling Machine for Beer Wine Whiskey Vodka

Quick Detail:

• Name:Wine Filling Machine
• Driven Type: Electric
• Voltage: 110/220/380V
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Certification: CE,ISO
• Material: stainless steel
• Processing: bottle packing machine
• Suitable Bottle:Glass Bottle
•  Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas

Description:

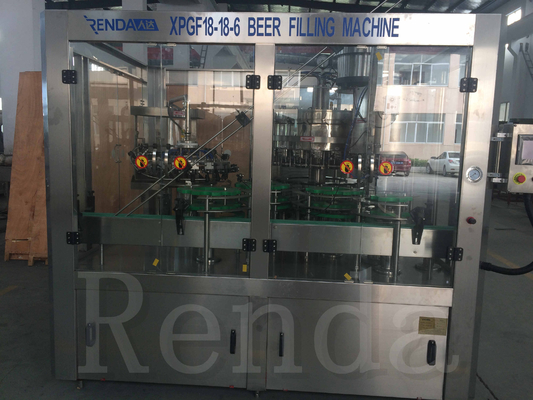

High Speed Custimized Beer Wine Whiskey Vodka Glass Rinsing Bottling Capping Machine

Product Description:

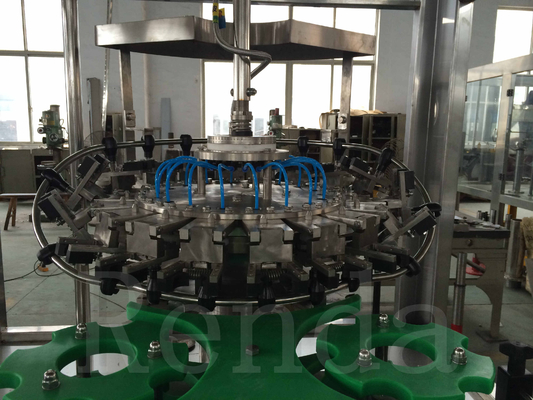

1) The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

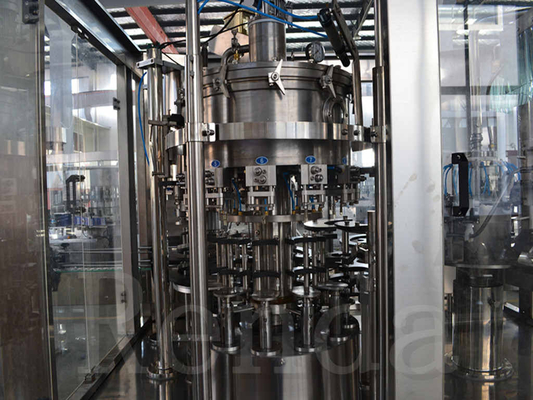

2) Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3) Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
4) Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
5) Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6) Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7) With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8) All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
9) Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10) The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

Applications:

The CGFD series filling machine is specialized in wine  filling.

Specifications:

High Speed Custimized Beer Wine Whiskey Vodka Glass Rinsing Bottling Capping Machine

Download for more details:

DCGF18-18-6 Washing filling capping machine.pdf
