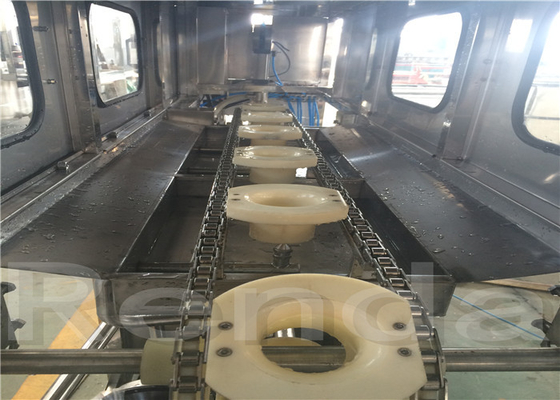

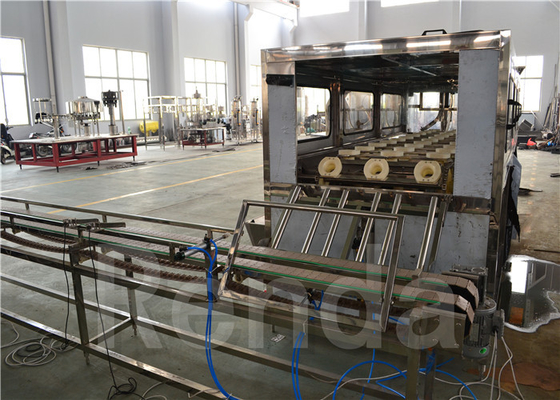

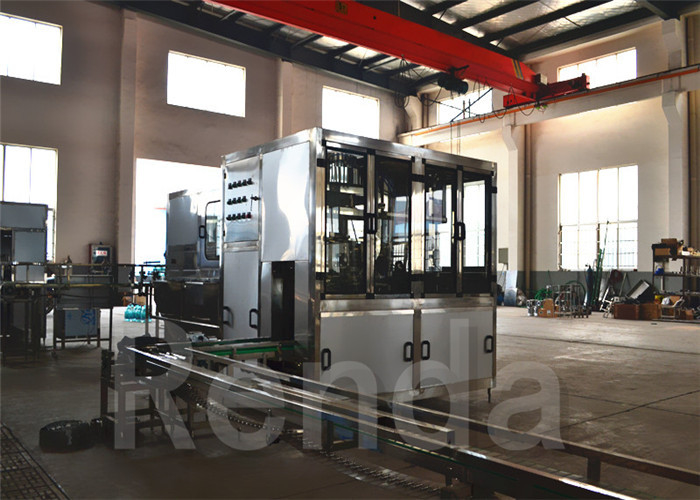

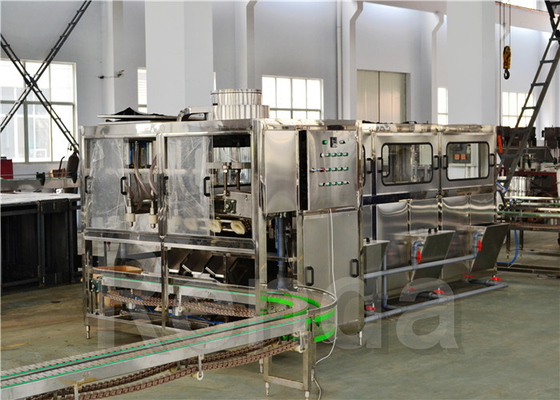

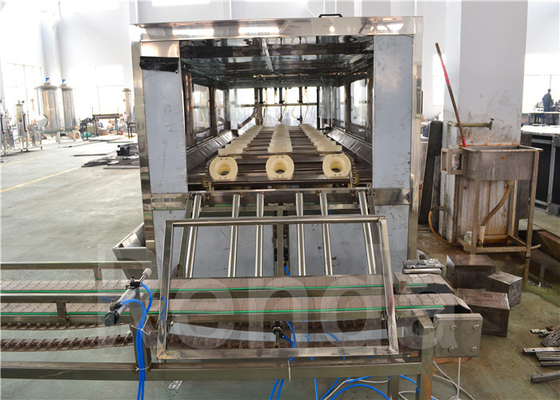

CE 5 Gallon Barrel Filling Machine For Mineral Water / Pure Water / Beverage

CE 5 Gallon Barrel Filling Machine For Mineral Water / Pure Water / Beverage​

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Power: 8.5KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 2560*2350*2750mm

Weight:9500kg

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle:5 gallon

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Description:

1. PLC controlled, full automatic working, filling volume and filling time can be adjustable;

2. All machines are made of Stainless steel SUS304 or SUS316, and the surface of the machine is well polished, easily for future cleaning;

3. All the pipeline, valve, is made of stainless steel, other necessary PVC parts are food grade;

4. We can design the producing capacity according to customer requirement, the rinsing, filling head can be from 1-16, during rinsing process, the barrel will be rinsing by hot alkali, disinfecting water, and then pure water, to ensure every corner of the bottle is well cleaned;

5. Cylinder-pushing structure is widely used in our bottle feeding, bottle filling, and bottle capping system, and the whole process is automatically

6. All the pump used in our producing line is stainless steel material;

7. No bottles no rinsing, no bottle no filling, no bottles no capping;

8. Producing capacity: 100BPH-2000BPH

Applications:

5 Gallon Bottling Equipment for Mineral Water Pure Water Beverage Bottling Equipment

Specifications:

5 Gallon Bottling Equipment for Mineral Water Pure Water Beverage Bottling Equipment

Download for more details:

300BPH 5 Gallon Water Filling and Packing System.pdf
