Automated 900BPH 5 Gallon Barrel Filling Machine With Rinsing Filling Sealing SUS304

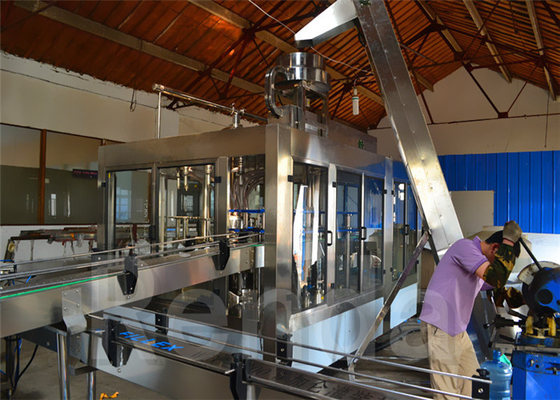

Large Image : Automated 900BPH 5 Gallon Barrel Filling Machine With Rinsing Filling Sealing SUS304 Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	QGF-900

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case
Delivery Time:	20 days
Payment Terms:	T/T, L/C
Supply Ability:	30 pcs/month

Contact Now

Detailed Product Description

Application:	Water	Automatic Grade:	Automatic\|automated
Capacity:	5 Gallon	Driven Type:	Electric
Material:	Stainless Steel	Power:	8.5KW
Voltage:	110V\|220V\|380V
High Light:	beverage filling machine , water filling machine

Automated 900BPH 5 Gallon Barrel Filling Machine With Rinsing Filling Sealing SUS304

Quick Detail:

Name:Barrel Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Power: 8.5KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H):2200*1860*2700mm
Weight:7500kg
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle:5 gallon
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas

Description:

1,The air conveyor is directly connected with bottle-in star wheel. The bottle is transferred by neck holding.
2,High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
3,By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4,Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5,The high speed line is of ring type pressure bearing hydraulic cylinder.
6,High speed and large flow filling valve assures the high filling speed and exact fluid level.
7,Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8,The bottle-out star wheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height.

Applications:

900BPH 5Gallon Rinsing Filling Sealing Machine Water Bottle Filler Machine SUS304

Specifications:

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Filling heads	1	2	3	4	8	12	16
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity(B/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption (m³/min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(Kw)	1.75	3.22	4.8	8.5	8.5	8.5	8.5
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	3790×650 ×1550	3550×800 ×1800	3550×1200 ×1800	3650×1500 ×1800	2200×1860 ×2700	2560×2350 ×2750	3100×2800 ×2750
Weight(kg)	800	2800	4000	5500	7500	9500	11800

Competitive Advantage:

1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine

900BPH 5Gallon Rinsing Filling Sealing Machine Water Bottle Filler Machine SUS304
