Quick Detail:

• Name:Carbonated Drink Filling Machine
• Driven Type: Electric
• Voltage: 110/220/380V
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Certification: CE,ISO
• Processing: bottle packing machine
• Suitable Bottle: 0.25-2L
• Material: stainless steel
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery oversea

Description:

Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→ Reverse Osmosis→ Ozone generator with Ozone generator

→Pure water tank → Processing System(Syrup Melting Machine-Syrup Pump-Syrup Filter-Mixing Tank-Beverage Pump-Double Filter-Beverage Mixing Machine-Water Chiller-Pipes and valves-Control Cabinet)→Filling System(Washing,Filling,Capping 3 in 1+Light Check)→Bottle labeling machine →Bottle packing machine

1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)
2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

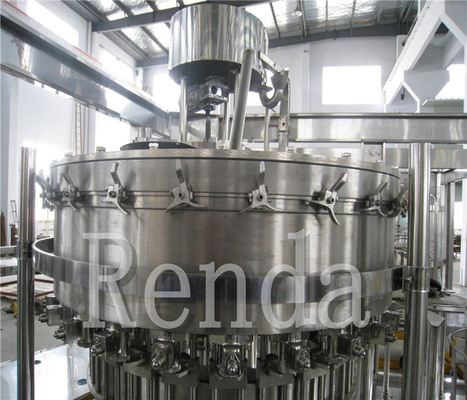

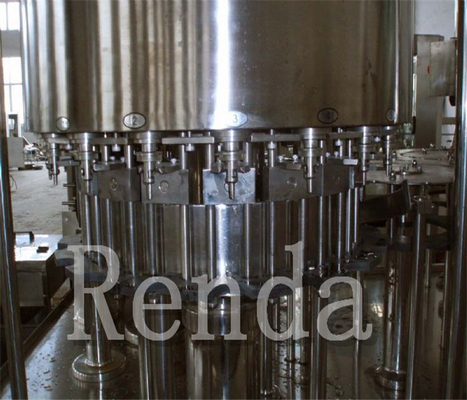

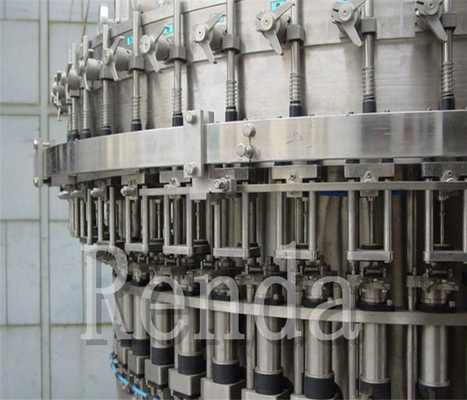

3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.
4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.
5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.
6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.

Applications:

Applicable for: Cola, Carbonated beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Production capacity: 8000BPH—10000BPH

Competitive Advantage:

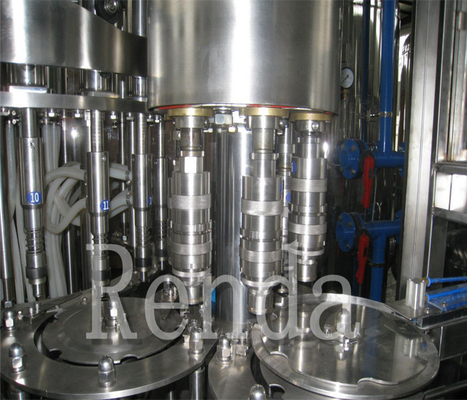

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology
