Electric Driven PET Soda Automatic Bottle Filling Machine 110V / 220V / 380V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Beverage|Coca-Cola | Capacity: | 8000BPH|10000BPH |
|---|---|---|---|
| Material: | Stainless Steel | Power: | 9KW |
| Processing: | Bottle Packing Machine | Product Name: | PET Soda Filling Machine Bottled Carbonated Water Machine Automatic Soda Bottling Equipment |
| High Light: | water filling machine,automatic bottle filling machine |
||

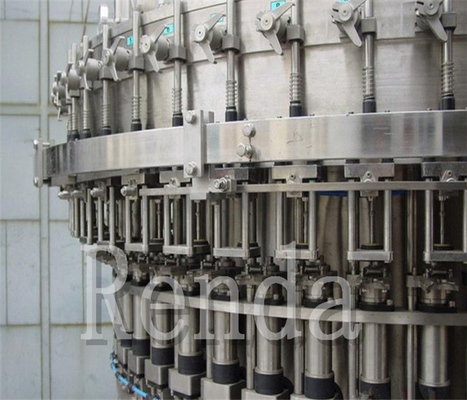

Electric Driven PET Soda Automatic Bottle Filling Machine 110V / 220V / 380V
Quick Detail:
Name:Carbonated Drink Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H):3000*2500*2400mm
Weight:9.8T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overse
Description:
(1)This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
(2)It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 2000BPH to 20000BPH.
(3)It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4)Adopting suspensory transmission gear can easily upkeep and be repaired.
(5)The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6)It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
Applications:
Applicable for: Cola, Carbonated beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Production capacity: 8000BPH—10000BPH
PET Soda Filling Machine Bottled Carbonated Water Machine Automatic Soda Bottling Equipment
Specifications:
| Model: | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-10 | ||
| Capacity :500ml | 5000 | 8000 | 12000 | 16000 | ||
| Bottle shape: | roud or square | |||||
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| Cap: | PE srew cap | |||||
| Filling precision: | ≤±5mm | |||||
| Filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
| Rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
| Filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
| Overall size:(mm) | 2450*1800 *2350 | 2780*2200 *2350 | 3600*2650 *2350 | 3800*2950 *2400 | ||
| Weight: (kg) | 3500 | 4500 | 5500 | 6500 | ||
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
PET Soda Filling Machine Bottled Carbonated Water Machine Automatic Soda Bottling Equipment
Download for more details:
DCGF12-12-6 Washing,Filling,Capping 3-in-1 Machine.pdf
