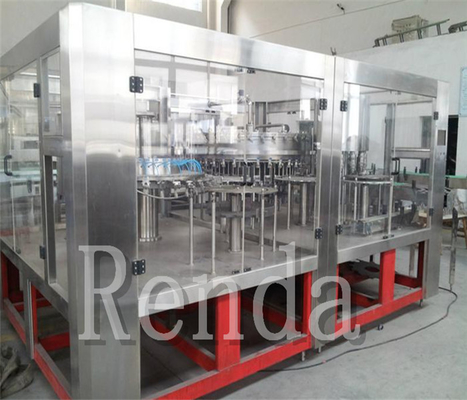

CE 9KW Carbonated Drink Filling Machine Carbonated Soda Small Bottle Filling Machine 8000BPH|10000BPH

CE 9KW Carbonated Drink Filling Machine Carbonated Soda Small Bottle Filling Machine 8000BPH|10000BPH

Quick Detail:

1. Name:Carbonated Drink Filling Machine
2. Driven Type: Electric
3. Voltage: 110/220/380V
4. Power: 9 KW
5. Place of Origin: Jiangsu, China (Mainland)
6. Brand Name: Renda
7. Dimension(L*W*H):3000*2500*2400mm
8. Weight:9.8T
9. Certification: CE,ISO
10. Processing: bottle packing machine
11. Suitable Bottle: 0.25-2L
12. Material: stainless steel
13. Warranty: 1 year
14. After-sales Service Provided: Engineers available to service machinery oversea

Description:

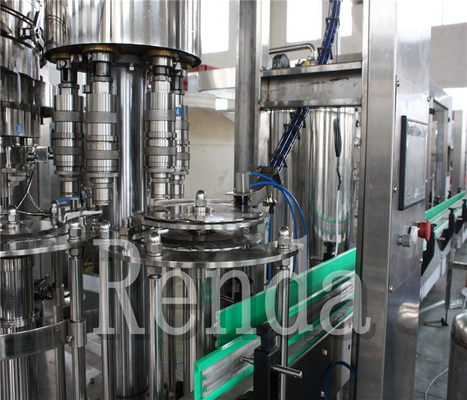

1. The rotary wheel is a fully stainless steel welded structure.

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips

bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle

clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,

and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer starwheel

7. Made of stainless steel of superior quality.

Applications:

Applicable for: Cola, Carbonated beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Production capacity: 8000BPH—10000BPH

Carbonated Water Bottling Machine, Small Bottle Filling Machine, Carbonated Soda Machine

Specifications:

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology

CE 9KW Carbonated Drink Filling Machine Carbonated Soda Small Bottle Filling Machine 8000BPH|10000BPH

Download for more details:

DCGF12-12-6 Washing,Filling,Capping 3-in-1 Machine.pdf
