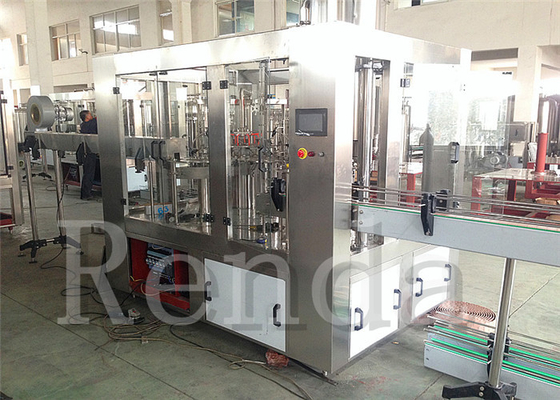

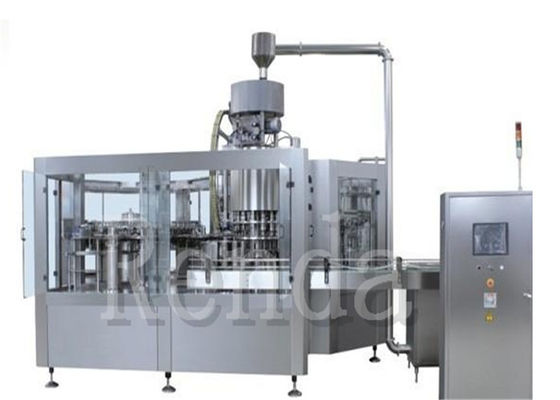

Bottled Juice Filling Machine Equipment Juice Bottling Machines 18000BPH PET / Glass Bottle

Bottled Juice Filling Machine Equipment Juice Bottling Machines 18000BPH PET / Glass Bottle

Quick Detail:

1. Driven Type: Electric
2. Voltage: 110/220/380V
3. Power: 10.5KW
4. Place of Origin: Jiangsu, China (Mainland)
5. Brand Name: Renda
6. Dimension(L*W*H): 2900*2500*2900mm
7. Weight:9.2T
8. Certification: CE,ISO
9. Processing: bottle packing machine
10. Suitable Bottle: 0.25-2L
11. Material: stainless steel
12. Warranty: 1 year
13. After-sales Service Provided: Engineers available to service machinery overse
14. Name:Juice Filling Machine

Description:

1. Adopt magnetic torque screwing head cover, to achieve grasping cap, screw cap. The power of screw capping can be adjusted steplessly. It can use constant power to screw capping the plastic caps.
2. The human machine interface is the touch-screen. The most advanced PLC control and frequency changing technologies are used in this machine.
3. The cap feeding system can be controlled automatically, the filling temperature can be detected automatically, alarm system for the over heat of the beverage.

4.The filling will be stopped when the beverage temperature is too low and the beverage will flow back. When no bottles available, the machine will be in waiting state, and no caps will be applied. When no caps available, or the bottles are jammed, the machine will stop automatically.

5.The Productivity can be made by customer.

Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.

Applicable container: various PET bottles with different capacities and shapes

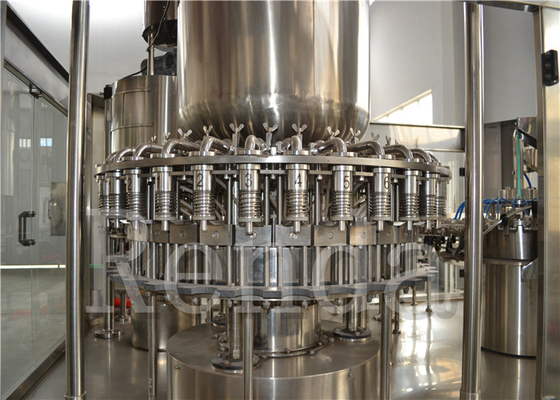

Bottling system: gravity bottling, low vacuum bottling etc.

Production capacity: 15000BPH—18000BPH

Specifications:

Competitive Advantage:

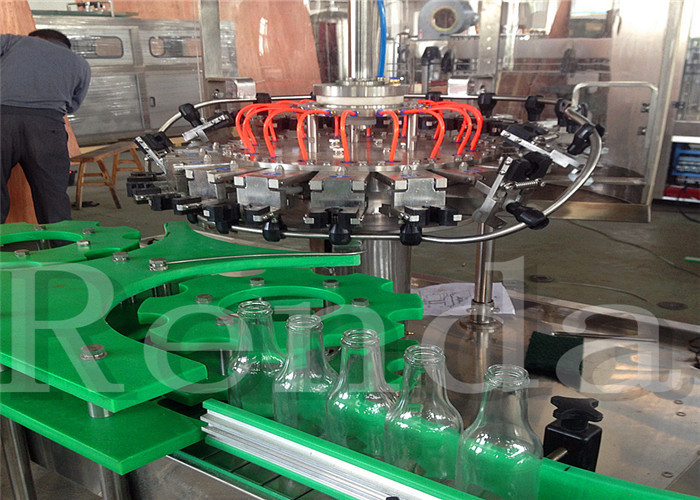

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology

Download for more details:

RCGF12-12-6 Juice Washing Filling Machine.pdf
