0.25 - 2L Bottle Stainless Steel Juice Filling Machine Bottling Equipment 110V / 220V / 380V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage/juice/hot/tea Drinks | Automatic Grade: | Full Automatic |
|---|---|---|---|
| Capacity: | 15000BPH|18000BPH | Driven Type: | Electric |
| Material: | Stainless Steel | Power: | 10.5KW|5KW |
| Processing: | Bottle Packing Machine | Voltage: | 110V|220V|380V |
| Filling Material: | PET/Glass Bottle | ||
| High Light: | automatic bottle filling machine,beverage filling machine |
||

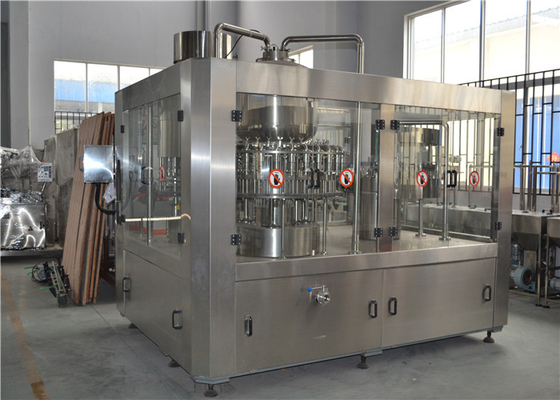

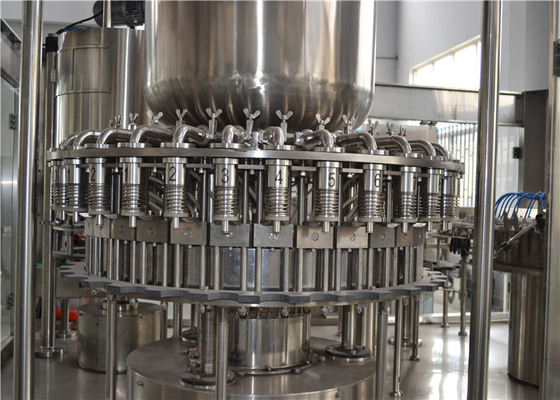

0.25 - 2L Bottle Stainless Steel Juice Filling Machine Bottling Equipment 110V / 220V / 380V
Quick Detail:
- Name:Juice Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 10.5KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 2900*2500*2900mm
- Weight:9.2T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery oversea
Description:
1.The appearance of the juice filling machine is beautiful and the function is complete.Its operation and maintenance is convenient.Its automation is high.
2.The advanced technology from Germany and Italy are employed.The speed of filling is fast and the flavored juice amount is controlled accurately.The filling device can be stopped automatically when there is no bottle or bottles are damaged.The advanced machine runs smoothly with low noise.
3.The magnetic torque is used for screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping can,also be fixed,and the caps will not be damaged,the capping is reliable.
4.Horizon swirl air power caps sorting device is used to avoid damaging the surface of caps,and there is a shortage of caps in the caps storage tank,an alarm signal will be generated and the caps will be fed automatically.
5.The whole juice filling machine / production line is controlled by PLC with touch-screen as the interface.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 15000BPH—18000BPH
Specifications:
| Model | RCGF8-8-3 | RCGF12126 | RCGF18186 | CGFR24248 |
| Number of washing, filling and capping heads | 8-8-3 | 12-12-6 | 18-18-6 | 24-24-8 |
| Production capacity (500ml) (B/H) |
2000 | 4000 | 7000-8000 | 10000-12000 |
| Suitable bottle specification(mm) | volume=330-2000ml | φ=50-110 H=150 ~340mm volume=330-2500ml | ||
| Washing pressure(kg/cm 2 ) | 2-3 | |||
| Motor power(kw) | Main motor 1.9kw |
Main motor 3.5kw |
Main motor 4.0kw |
Main motor 4.8kw |
| Overall dimensions (mm) | 1900*1420*2000 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100 *2400 |
| Weight (kg) | 1500 | 2500 | 3500 | 4500 |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
