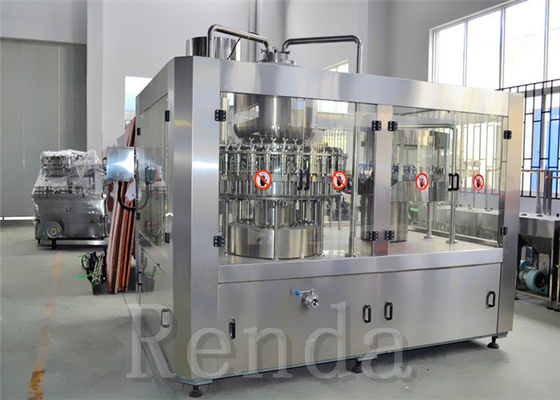

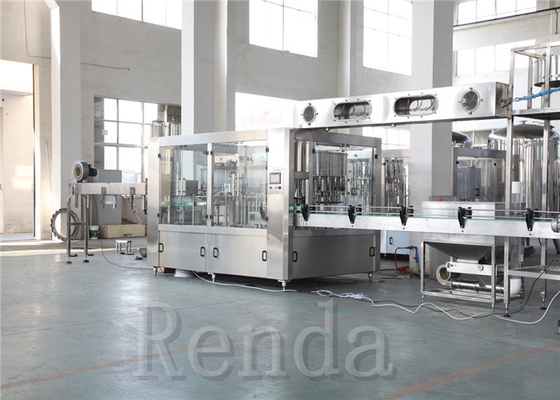

Full Automatically Bottle Juice Filling Machine Juice Bottle Filler Machine CE / ISO

Name: Full Automatically Bottle Juice Filling Machine Juice Bottle Filler Machine CE / ISO
Brand: Renda
SKU: RCGF12-12-6

Large Image : Full Automatically Bottle Juice Filling Machine Juice Bottle Filler Machine CE / ISO Get Best Price

Product Details:

Place of Origin:	Zhangjiagang China
Brand Name:	Renda
Certification:	ISO,CE
Model Number:	RCGF12-12-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiabled
Packaging Details:	Wooden case packing
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Application:	Fruit Juice\|beverage	Automatic Grade:	Automatic\|automated
Capacity:	15000BPH\|2000-4000BPH	Driven Type:	Electric
Power:	3.2KW	Processing:	Bottle Packing Machine
Voltage:	110V\|220V\|380V	Material:	SUS 304 316
High Light:	automatic bottle filling machine , beverage filling machine

Full Automatically Bottle Juice Filling Machine Juice Bottle Filler Machine CE / ISO

Quick Detail:

Name:Juice Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Power: 3.2KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 1900*1500*2500mm
Weight:7T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overse

Description:

1. The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.
2. This 3-in-1 monobloc machine is for fruit juice, tea beverage, etc. Processing.
3. Water bottling machine, it is a fully automatic and multi-functions combined machine, which integrats bottle rinser, filler and screw capper in one unit. It is suitable for filling non carbonated beverage, such as fruit juice, wine, mineral water, pure water and tea.
4. Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.

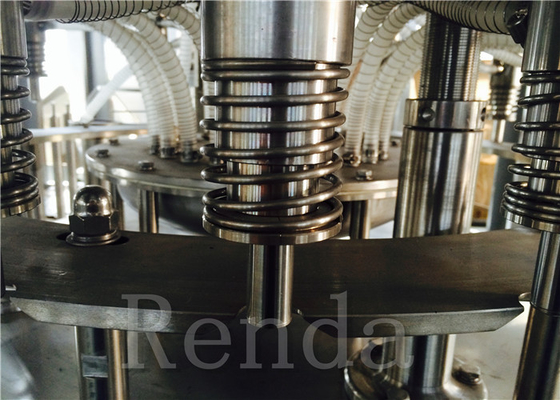

5. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to change the size of bottles easily, without adjusting the equipment height. Only arch board and star wheel such little nylon parts need to be changed.
6. The head of filling machine is made of better stainless steel, which is firm and endurable.
The whole juice filling machine has many unique designs. It is the best beverage machine in China at present.

Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH

Specifications:

Main Technical Specifications
Model	RCGF12-12-6
Production Capacity (600ml)(b/h)	2000-4000
Way of filling	Hot filling
Filling precision	±5mm
Feedback consumption	≤8%
Polyester bottle standard(mm)	Bottle Diameterƒ50-ƒ92;Height:150-320
Suitable cap shape	Plastic cap
Water pressure of washing bottle(Mpa)	0.2-0.25
Water consumption for water bottle(kg/h)	800
Gas source pressure (M Pa)	0.4
Total power(Kw)	3.2
Total Weight(Kg)	2000
Dimension(LWHmm)	190015002500

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

Full Automatically Bottle Juice Filling Machine Juice Bottle Filler Machine CE / ISO

Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
