Vacuum 3 IN 1 Juice Laundry Determent Juice Filling Machine Washing / Filling / Capping Function 10000BPH
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Full Automatic Juice Filling Machine , Beverage Filling Machine Bottling Equipment | Name: | Juice Filling Machine |
|---|---|---|---|
| Driven Type: | Electric | Voltage: | 110/220/380V |
| Warranty: | 1Year | Power: | 5KW |
| Suitable Bottle: | 0.25-2L | Material: | SUS 304 316 |
| High Light: | water filling machine,automatic bottle filling machine |
||

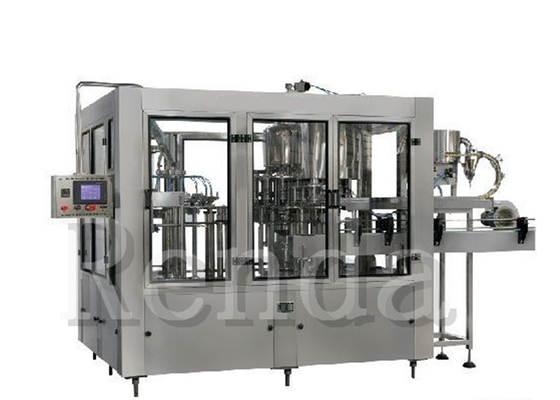

Vacuum 3 IN 1 Juice Laundry Determent Juice Filling Machine Washing / Filling / Capping Function 10000BPH
Quick Detail:
- Name:Juice Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 5KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Dimension(L*W*H): 2360*1770*2400mm
- Weight:3T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery oversea
Description:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine. mineral water filling machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine.
4. Main electronic components are all from famous international enterprises, like Siemens or Mitsubishi.
5. All spare parts that may touch with water are made from high-quality stainless steel.
Vacuum 3 IN 1 Juice Laundry Determent Filling Machine Washing / Filling / Capping Function 10000BPH
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 8000BPH—10000BPH
Specifications:
| Model | CGFR | CGFR | CGFR | CGFR | CGFR | CGFR |
| Rinsing Head No | 8 | 16 | 18 | 24 | 32 | 40 |
| Filling Head No | 8 | 12 | 18 | 24 | 32 | 40 |
| Capping Head No | 3 | 6 | 6 | 8 | 10 | 10 |
| Capacity (500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH | 15000-18000BPH |
| Overall Size | 1900*1420* | 2200*1600* | 2450*1900* | 2750*2180* | 4000*2300* | 4550*2650* |
| Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T | 12.0T |
| Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw | 8.3Kw |
| Rated Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
10000BPH RCGF24-24-8 Juice Rinsing Filling Sealing 3 IN 1 Machinery Juice Packaging Machinery
Download for more details:
RCGF18-18-6 Juice Washing Filling Capping Machine.pdf
