Fully Automatic Juice Filling Machine Juice Bottle Packing Machine CE ISO

Fully Automatic Juice Filling Machine Juice Bottle Packing Machine CE ISO​


Quick Detail:

Name;Juice Filling Machine
Driven Type: Electric
Power: 10 KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Weight:7T
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overse


Description:

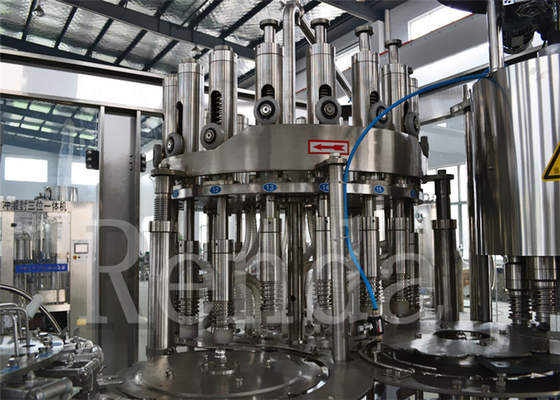

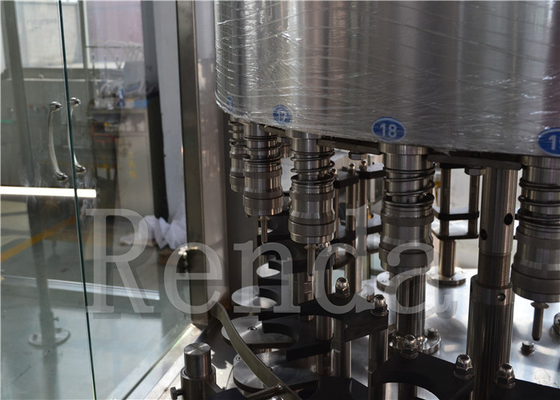

1.High speed filling valve, guarantees liquid has precise level and no waste is incurred

2.The capping heads apply constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.

3. The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.

4. The advanced programmed controller (PLC) is adopted to control the machine to run automatically.


Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH


Specifications:

Model: RCGF40-40-10

Washing heads: 40

Filling heads: 40

Capping heads: 10

Production capacity: 17,000-18,000B/H (basis on 500ml bottle)

Filling precision: ≤±5mm (liquid level)

Feedback consumption: ≤10%

Suitable bottle diameter: φ50-φ120mm

Suitable bottle height: 150-340mm

Suitable cap type: plastic screw cap

Gas source pressure: 0.7Mpa

Gas consumption: 0.5m3/min

Total power: 11Kw

Total weight: 9000Kg

Overall dimension: 4720×3550×2750mm


Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
