Quick Detail:

• Driven Type: Electric
• Voltage: 110/220/380V
• Power: 10.5KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Renda
• Dimension(L*W*H): 2900*2500*2900mm
• Weight:9.2T
• Certification: CE,ISO
• Processing: bottle packing machine
• Suitable Bottle: 0.25-2L
• Material: stainless steel
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overse
• Name:Juice Filling Machine

Description:

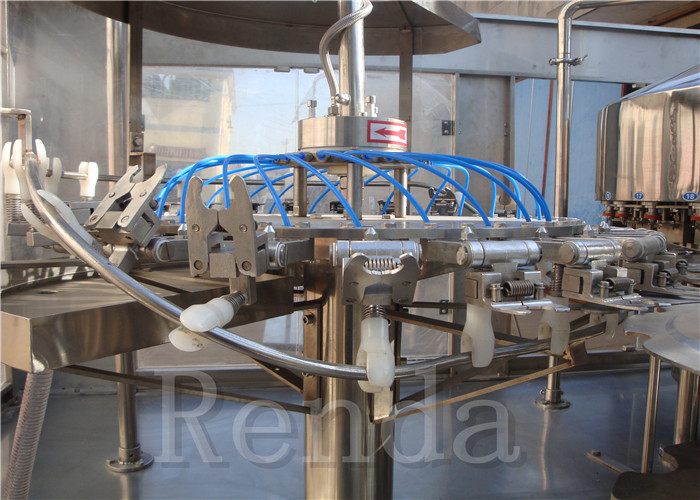

1,The air conveyor is directly connected with bottle-in star wheel. The bottle is transferred by neck holding.
2,High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
3,By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4,Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5,The high speed line is of ring type pressure bearing hydraulic cylinder.
6,High speed and large flow filling valve assures the high filling speed and exact fluid level.
7,Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8,The bottle-out star wheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height.

Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Bottling system: gravity bottling, low vacuum bottling etc.

Production capacity: 2000BPH—18000BPH

Specifications:

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology
