Glass / Plastic Bottle Water Bottling Juice Filling Machine Juice Bottle Filling Equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fruit Juice|beverage | Automatic Grade: | Automatic|automated |
|---|---|---|---|
| Capacity: | 1500BPH|20000BPH | Driven Type: | Electric |
| Material: | Stainless Steel | Voltage: | 220V|110V|380V |
| Power: | 9KW | Processing: | Bottle Packing Machine |
| High Light: | beverage filling machine,automatic bottle filling machine |
||
Glass / Plastic Bottle Water Bottling Juice Filling Machine Juice Bottle Filling Equipment
Quick Detail:
- Name:Juice Filling Machine
- Driven Type: Electric
- Voltage: 110/220/380V
- Power: 9KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Renda
- Weight:7T
- Certification: CE,ISO
- Processing: bottle packing machine
- Suitable Bottle: 0.25-2L
- Material: stainless steel
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overse
Description:
1. This equipment is automatic washing filling capping three in one machine. It's of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

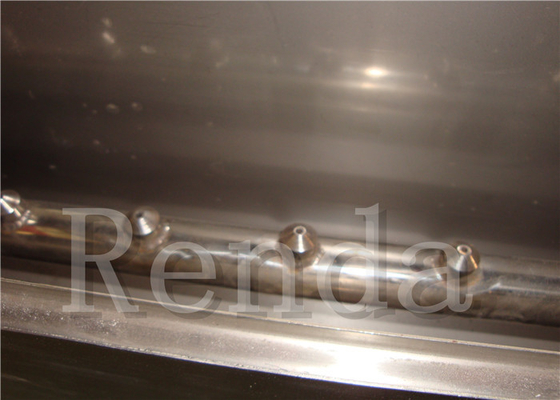

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

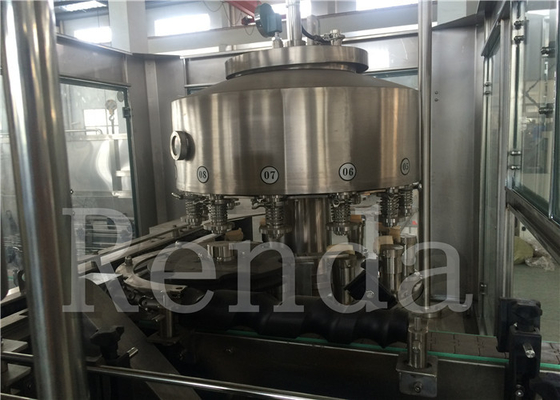

3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

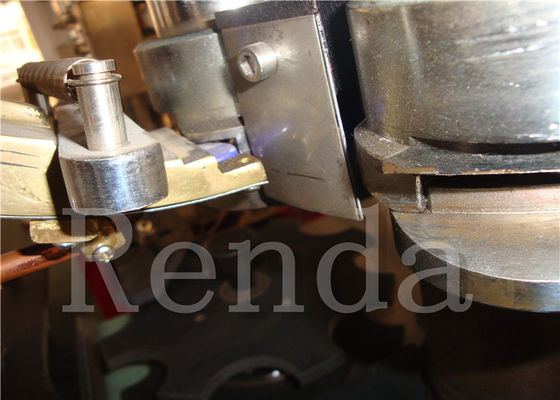

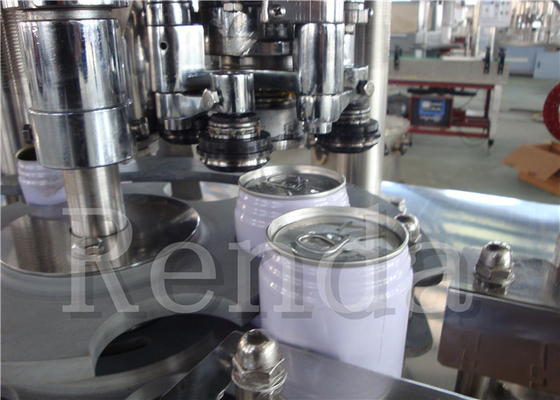

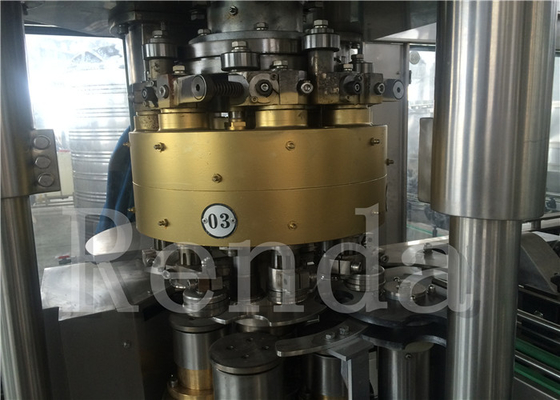

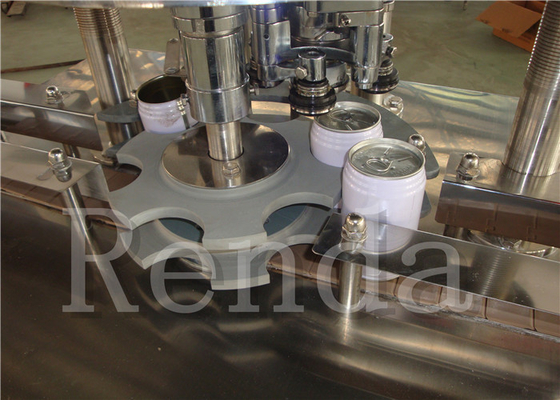

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.
Applications:
Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 12000BPH—15000BPH
Specifications:
| Model | RCGF12-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 |
RCGF |
| Heand of washing,filling capping | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 |
| Production capacity:500ml(BPH) | 4000 | 6000 | 10000 | 12000 | 16000 |
| Bottle Size | 50-95mm 330-1500ml | 50-105mm 330-2250ml | 50-110mm 330-2500ml | ||
| Pressure(Mpa) | 0.25-0.3 | ||||
| Power(KW) | 5.8 | 6.6 | 7 | 10.4 | 11.5 |
| Overall Dimension(mm) | 2300x1700x2500 | 2500x1850x2500 | 3100x2100x2500 | 4600x2160x2500 |
4600x3800 |
| Weight(Kg) | 2600 | 3500 | 5000 | 6800 | 8500 |
Product Catalog: ---- Filling Machine
Competitive Advantage:
--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology
Juice Making Equipment Juice Filling Machine for Sale Juice Bottle Filling Machine
Download for more details:
RCGF32-32-10 Juice Washing Filling Capping Machine.pdf
