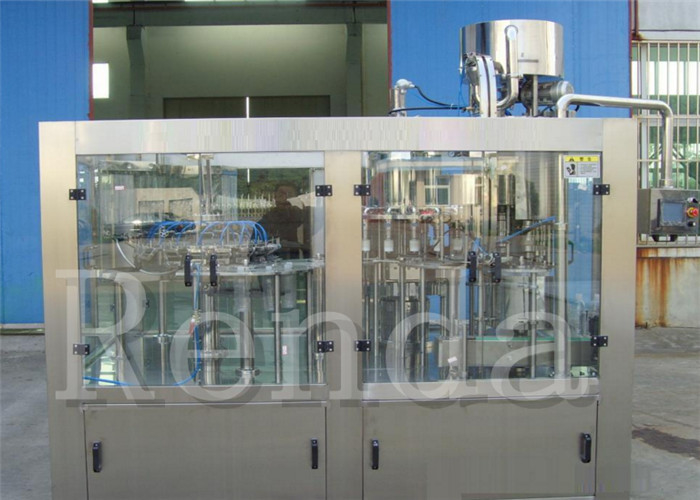

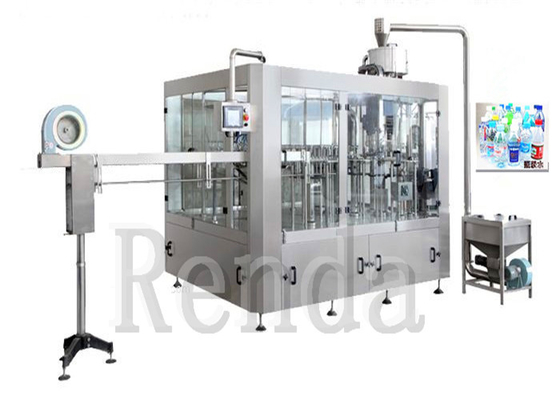

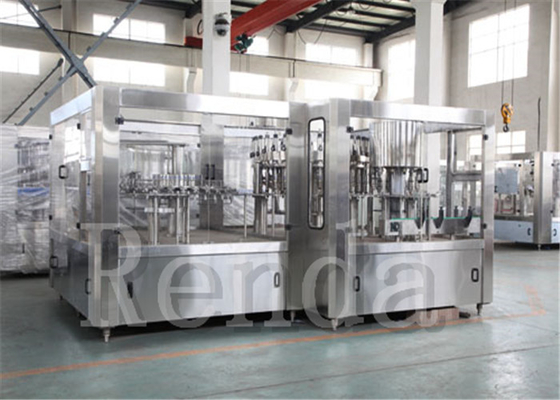

Full Automated Juice Bottling Equipment 4000BPH Fruit Juice Filling Machine

Full Automated Juice Bottling Equipment 4000BPH Fruit Juice Filling Machine​


Quick Detail:

Name:Juice Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 1900*1500*2500mm
Weight:7T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overse


Description:
Full Automatied Juice Bottling Equipment 8000BPH Fruit Juice Packaging Machine
Orange Juicer Filling Machine-----Features
1,The air conveyor is directly connected with bottle-in star wheel. The bottle is transferred by neck holding.
2,High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
3,By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4,Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5,The high speed line is of ring type pressure bearing hydraulic cylinder.

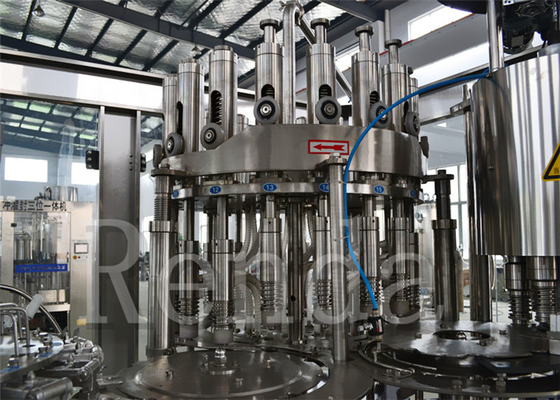

6,High speed and large flow filling valve assures the high filling speed and exact fluid level.
7,Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8,The bottle-out star wheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height.


Applications:

Applicable for: fruit juice, tea beverage, functional beverage etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 2000BPH—4000BPH
Full Automatied Juice Bottling Equipment 8000BPH Fruit Juice Packaging Machine

Specifications:


Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles
--Precise control bottling fluid level, powerfully prevent air bubble
--Sanitary class circulating pipe assures the temperature when bottling
--Capping and clamping technology

Download for more details:
RCGF12-12-6 Juice Washing Filling Machine.pdf
