Automatic Liquid Packing Filling And Capping Machine Water Bottle Filling Machine Plant
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Automatic Liquid Packing Machine Bottled Water Plant Bottling Machine Price For Sale | Application: | Pure Water|mineral Water|beverage |
|---|---|---|---|
| Power: | 3.8KW | Capacity: | 200ml|2000ml|10000BPH |
| Material: | Stainless Steel | Processing: | Bottle Packing Machine |
| High Light: | beverage filling machine,water filling machine |
||
Automatic Liquid Packing Filling And Capping Machine Water Bottle Filling Machine Plant
Quick Detail:
Name:Water Bottle Filling Machine
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2900*2450*2400mm
Weight: 3T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.25-2L
Output: 2000-20000BPH
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Automatic Liquid Packing Machine Bottled Water Plant Bottling Machine Price for Sale
Description:
1. The equipment is used in production of bottled non-carbonated drink of fruit juice, fruit wine, mineral water and pure water.
2. Rinsing, filling and capping are integrated in one machine.
3. The liquid filling technology of gravity which learned from latest technology from Japan and Germany is used in the design.
4. The filling is fast.
5. The fluid control is stability.
6. There is non-drip phenomenon.
7. Spring cramps are used in the bottle rinsing process. The empty bottles can be turned over 180° Along the conveying rail.
8. Rinsing the bottles inside and outside. The efficiency of bottle rinsing is high.

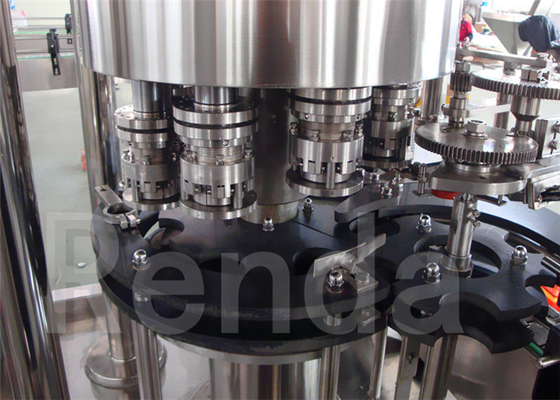

9. The magnetic torque is used for screw capping. The power of screw capping can also be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged. The capping is reliable.
10. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. The machine will be stopped automatically. When bottles are cramped wrongly or when caps are not available.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Automatic Liquid Packing Machine Bottled Water Plant Bottling Machine Price for Sale
| Model | CGF12/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
| Production Capacity: 500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
| Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard: (mm) | φ 50-φ 110 | |||||
| Filling Pressure: (Mpa) | 0.2-0.3 | |||||
| Installed Capacity: (L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
| Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
| Overall Size: L× W× H(mm) | 2400× 1670× 2350 | 2470× 1970× 2350 | 2865× 2170× 2350 | 3700× 2570× 2350 | 3800× 2950× 2400 | 4500× 3400× 2400 |
| Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download more details:
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
6000-8000 Water Bottling Production Line.pdf
2000-4000 Bottles per hour water filling plant.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
Automatic Liquid Packing Machine Bottled Water Plant Bottling Machine Price for Sale
Wooden case packing:

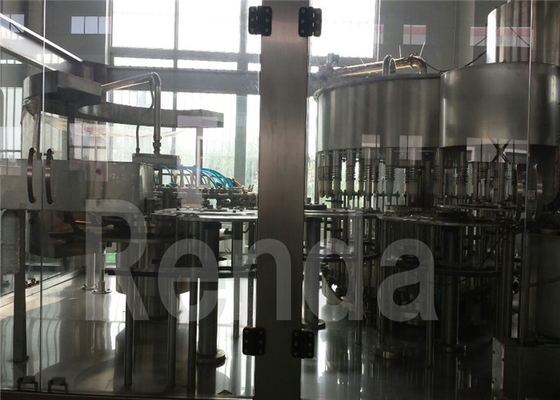

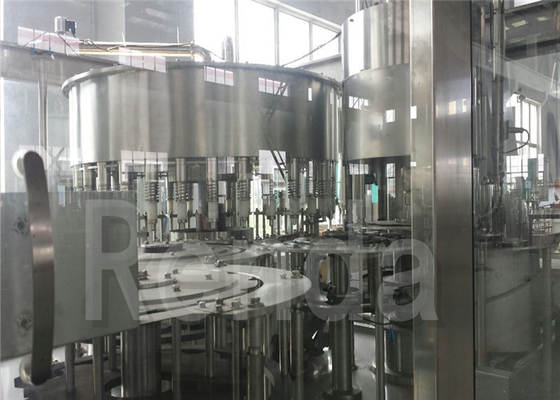

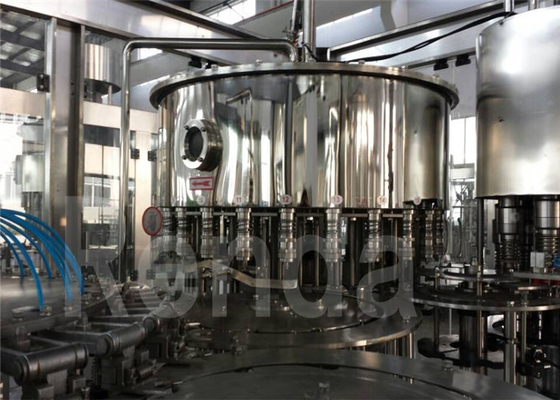

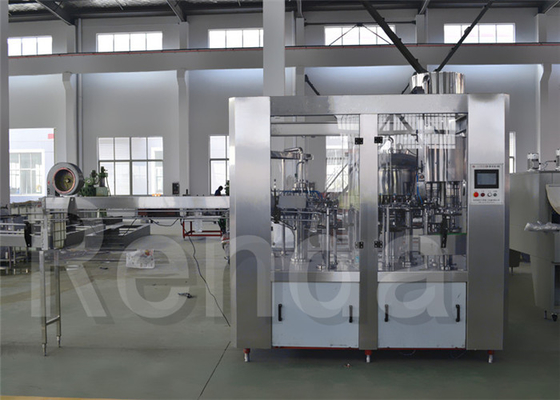

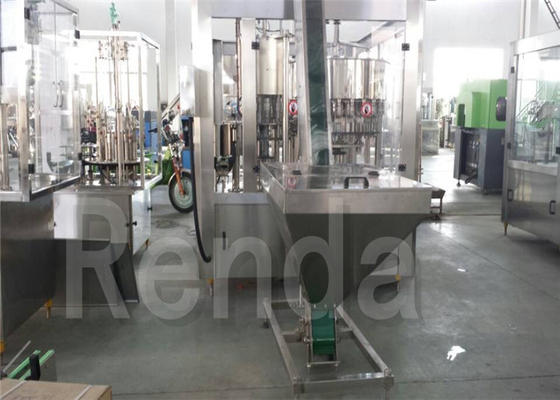

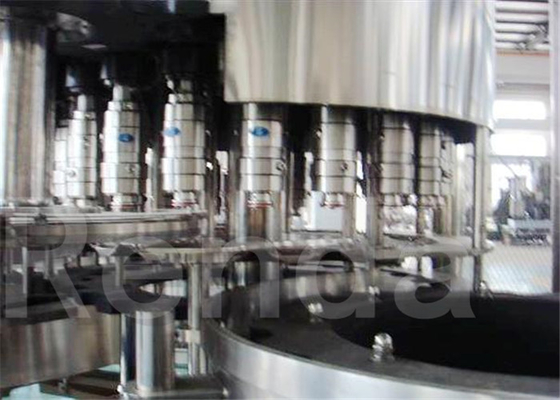

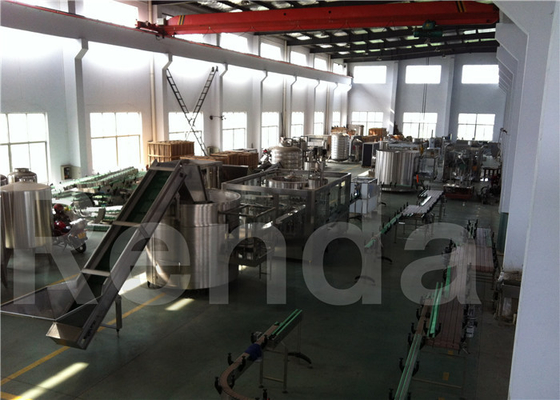

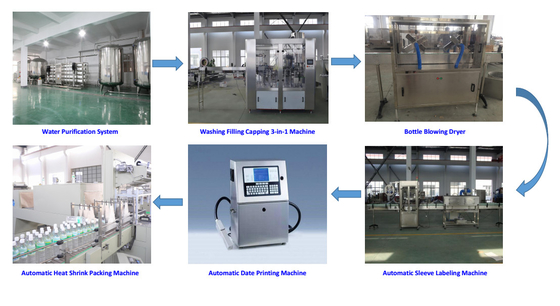

Machine Pictures:
Products Sample:
