Purified Water Liquid Water Bottle Filling Machine For Water Filling Line 330 - 2000 ml
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 6000-8000BPH | Processing Types: | Pure Water,Mineral Water,Beverage |
|---|---|---|---|
| Filling Vol: | 330-2000ml | Voltage: | 380v,220v |
| Power: | 6.68kw | Material: | SUS.304 |
| Production Name: | Drinking Water Machine Manufacturers Plastic Bottle Machine Small Bottling Equipment | Certification: | CE,ISO |
| Name: | Water Bottle Filling Machine | ||
| High Light: | automatic bottle filling machine,water filling machine |
||

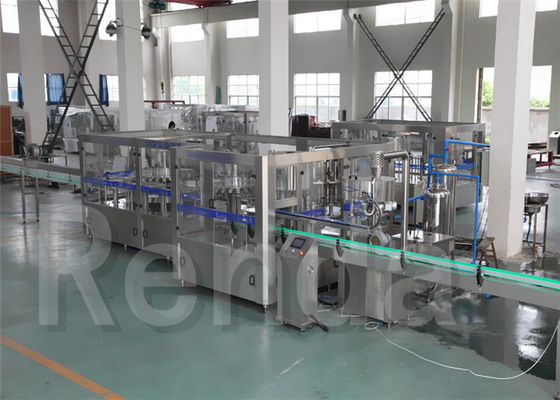

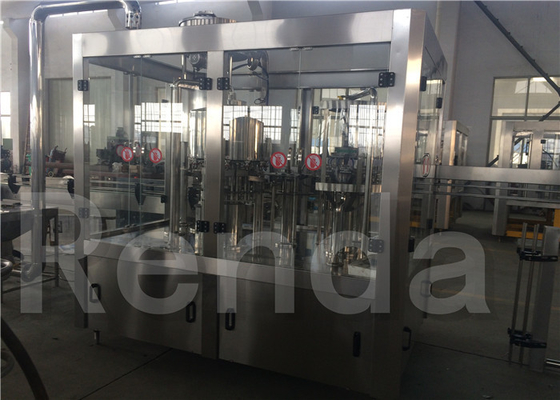

Purified Water Liquid Water Bottle Filling Machine For Water Filling Line 330 - 2000 ml
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Power: 6.68KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 2500*2000*2200mm
Weight: 3.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.33-2L
Material: stainless steel
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Name:Water Bottle Filling Machine
Description:
-for 330-2000ml bottle filling
-6000-8000 BPH
-no bottle no filling
-Easy operation and maintenance
1. This machine has a compact structure, perfect control system, easy to operate and highly automated.
2. Only by changing the star-wheel, arch board can realize fill bottle shape change
3. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

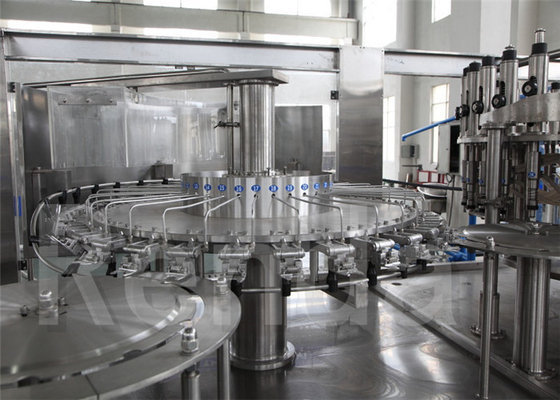

4. Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.

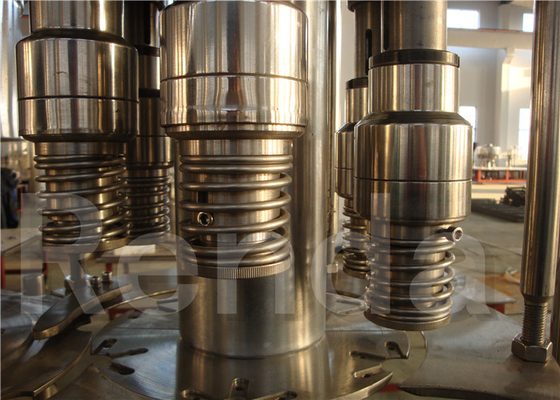

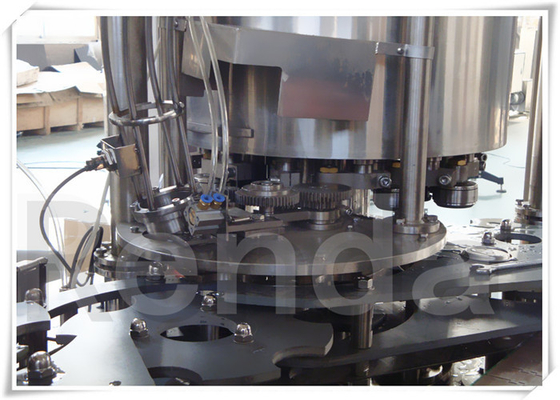

5. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
6. This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.
7. The machine adopts perfect overload protective device can ensure the operator and machine safety
8. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
9. The main electric and air-drive components are world famous brand products.
10. All control is advanced touch-screen operation and realize people-computer dialogue operation.
2. Only by changing the star-wheel, arch board can realize fill bottle shape change
3. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
4. Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.
5. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
6. This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.
7. The machine adopts perfect overload protective device can ensure the operator and machine safety
8. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
9. The main electric and air-drive components are world famous brand products.
10. All control is advanced touch-screen operation and realize people-computer dialogue operation.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
Specifications:
Drinking Water Machine Manufacturers Plastic Bottle Machine Small Bottling Equipment
| Model | CGF12124 | CGF18186 | CGF24248 | CGF323210 | CGF404010 | CGF505012 |
| Number of washing, filling and capping heads | 12-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 |
| Production capacity(600ml) (B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 |
| Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw |
| Overall dimensions (mm) | 2400×1650 ×2500 | 2600×1920 ×2550 | 3100×2300 ×2800 | 3800×2800 ×2900 | 4600×2800 ×2900 | 5450×3300 ×2900 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
6000-8000 Water Bottling Production Line.pdf
Drinking Water Machine Manufacturers Plastic Bottle Machine Small Bottling Equipment
