Electric Water Bottle Filling Machine For 330ml / 500ml Automatic PET Bottle Filling Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Pure Water|mineral Water|beverage | Capacity: | 2000-20000BPH 200ML-20000ML |
|---|---|---|---|
| Material: | Stainless Steel | Power: | 4.5KW |
| Processing: | Bottle Filling And Packing Machine | Product Name: | E Liquid Bottling Machine For 330ml,500ml PET Bottle Automatic Filler Machine |
| High Light: | beverage filling machine,automatic bottle filling machine |
||
Electric Water Bottle Filling Machine For 330ml / 500ml Automatic PET Bottle Filling Line
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V/Customized
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Dimension(L*W*H): 3100*2300*2800mm
Weight: 3.5T
Certification: CE,ISO
Processing: bottle packing machine
Suitable Bottle: 0.2-2L
Capacity: 2000-20000
Warranty: 1 year
Packing: Wooden Case Packing
After-sales Service Provided: Engineers available to service machinery overseas
Name:Name:Water Bottle Filling Machine
Description:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

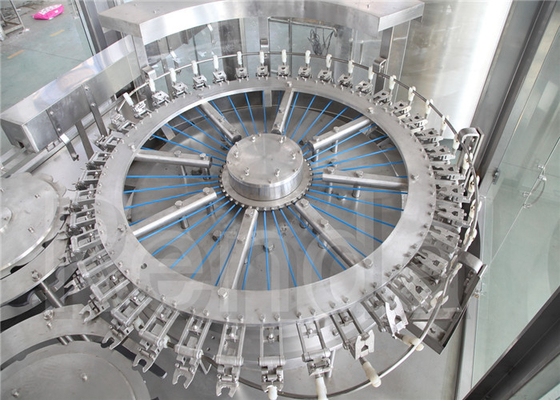

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

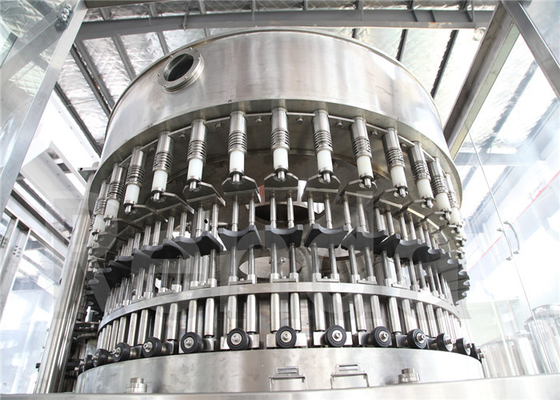

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Applications:
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
E Liquid Bottling Machine for 330ml,500ml PET Bottle Automatic Filler Machine
Specifications:
| Technical Data | ||||
| Model | CGF12/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
| The number of Washing, Filling, Capping | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-8 |
| Producing capacity; The number of bottle(600ml)/hour |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) |
2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
Competitive Advantage:
1. Best price & best quality
2. Custom-made details
3. Delievery in time.
4. Life-time good service.
Download for more details:
2000-4000 Bottles per hour water filling plant.pdf
6000-8000 Water Bottling Production Line.pdf
8000-10000Water Bottling Equipment.pdf
12000-15000BPH Water Filling Production Line.pdf
18000-20000BPH Beverage filling machine.pdf
Manufacturing more machines:
Beverage filling machine, Water bottling machine, Bottle fillers, Bottling Equipment, Juice filling machine, Liquid filling machines, Bottling Equipment, Carbonated drinks filling machine, Beer filling machine, Can filling machine, Oil filling machine, etc.
E Liquid Bottling Machine for 330ml,500ml PET Bottle Automatic Filler Machine
Wooden case packing:
Machine details:
